- Illumination Structure
- The light from perpendicularly arranged LEDs is transmitted through a light-guiding plate to illuminate the center of the workpiece with uniform diffused light from a low angle.
- Illumination Structure
- Convergent waterproof Ring Light that ensures brightness with a convergent lens.
- Illumination Structure
- LEDs are arranged at high-density on a single flat circuit board and the object can be illuminated from any angle as desired.
- Illumination Structure
- This Bar Light has a built-in controller. Switching to overdrive lighting enables a brighter light intensity. Large workpiece is handled very well with long-distance rradiation.
高亮LED光源HLDL3系列
适用于长距离和宽范围照射的条形光源
适用于各种检测案例，如大型工件的外观检查，长距离照射，机器人拾取等案例。
- 亮度是 HLDL2 系列*的 1.7 倍。
- 支持更快的检测速度和更高的分辨率。
- 产品系列扩展到144 种，应用范围更广。
- 12种尺寸,从150mm到1800mm（以150为单位）。
- 4种发光颜色可选，红色、白色、蓝色、红外。
- 配光特性除了宽指向性和窄指向性外，现在还增加了中等指向性。
- 外壳比现有产品更轻薄，可安装在机器臂和检测设备上。
- 可提供特殊定制，如不同的波长，驱动超频式频闪。
（*宽型：亮度是HLDL2系列的1.1倍，窄型：亮度是HLDL2系列的1.7倍）

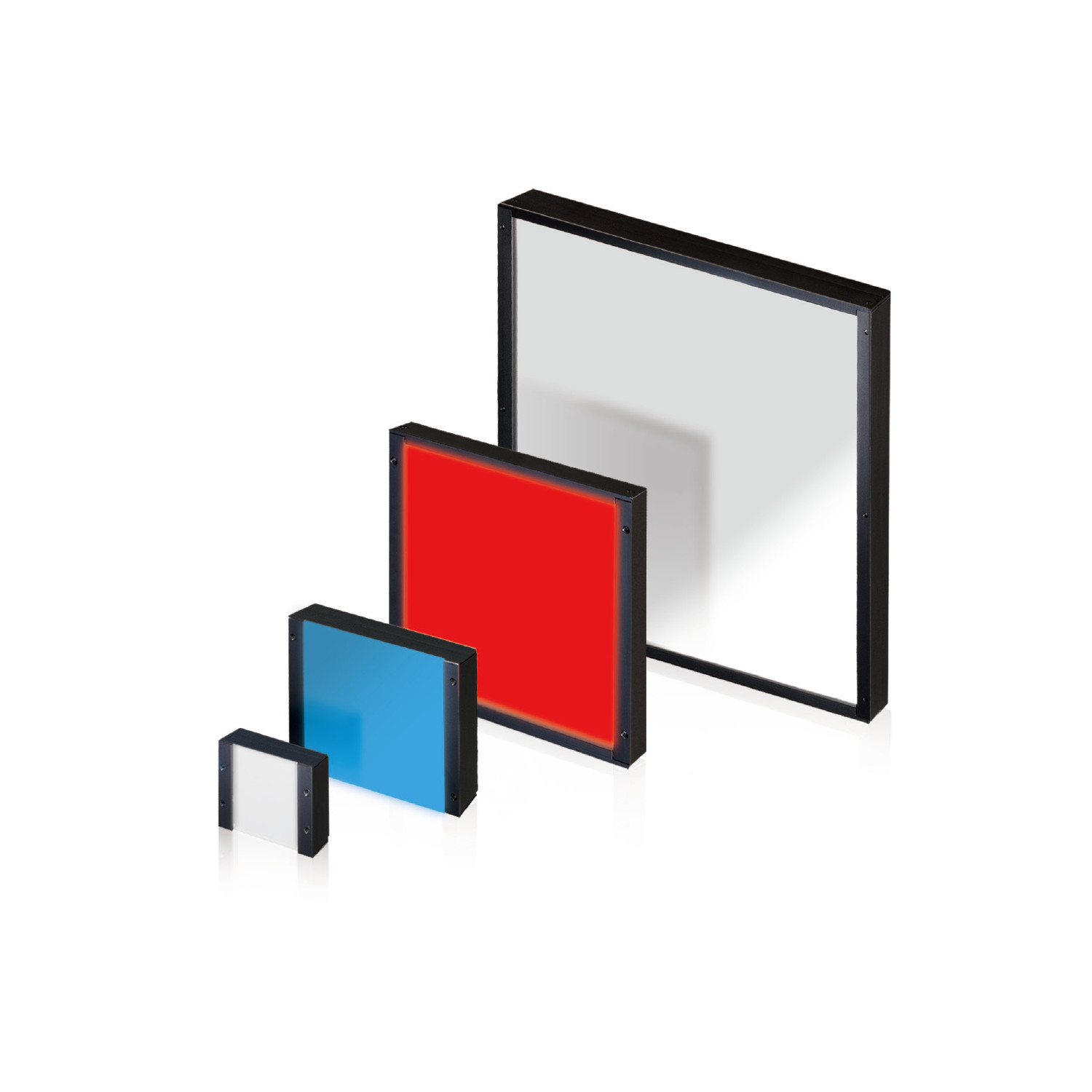

以嵌入式将LED配置在方形的导光扩散板外圈。从平坦的发光面照射扩散光。
采用光源厚度最小仅为6mm（LFL-612/LFL-1012/LFL-50）的薄型设计，可节省设置空间。
- Illumination Structure
- LEDs are embedded around a quadrangular light-guiding diffusion plate. Uniform, diffused light is radiated from a flat light-emitting surface.
[Not available in Japan]High-accuracy contour extraction and
foreign object detection of transparent and metal workpieces
