LAV-80GR2

  • 标准品

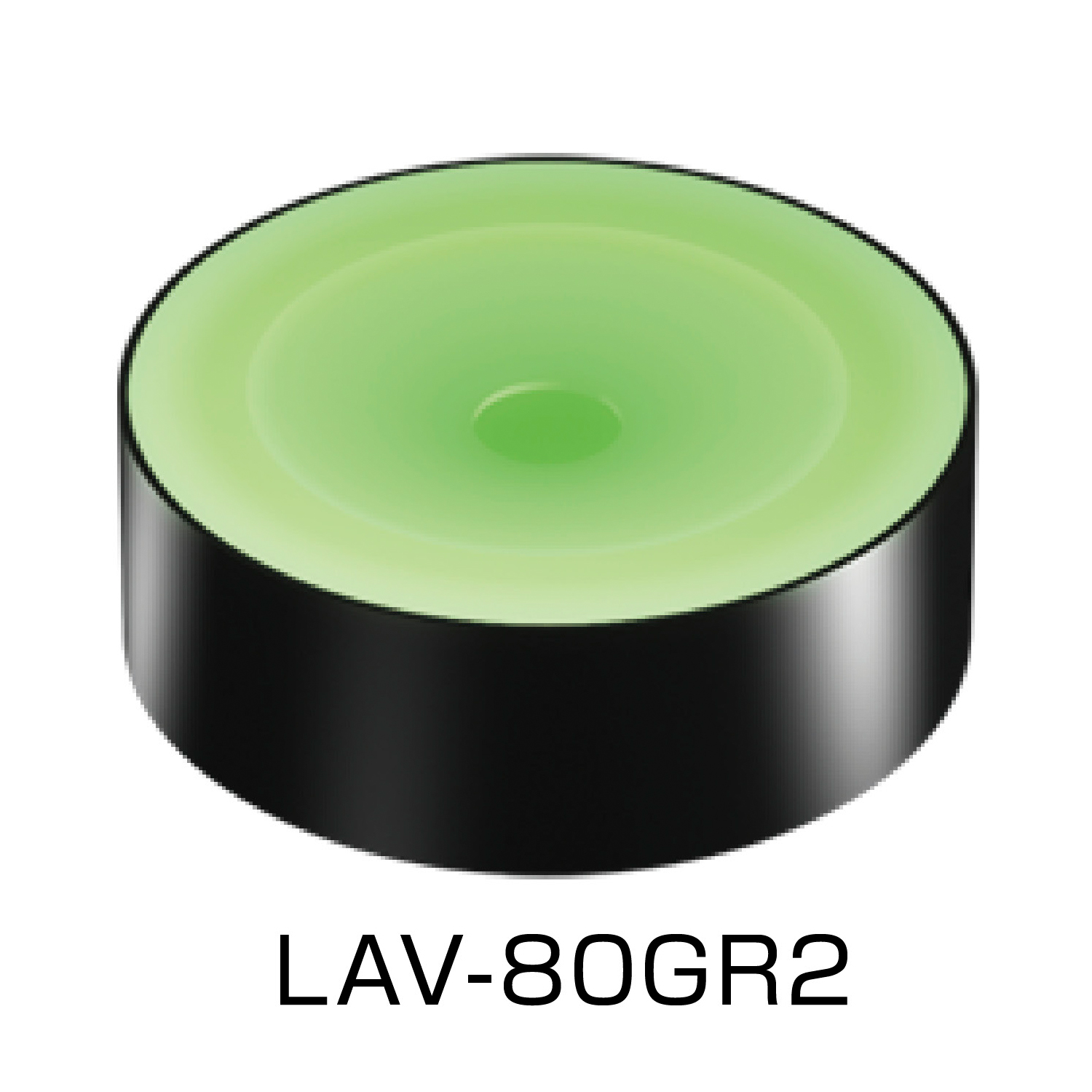

Diffused light and coaxial light have been integrated in one unit.
This Light Unit emits green light and has an outer diameter of 80 mm, an inner diameter of 14 mm, a height of 28 mm, and a light-emitting surface diameter of 54 mm.

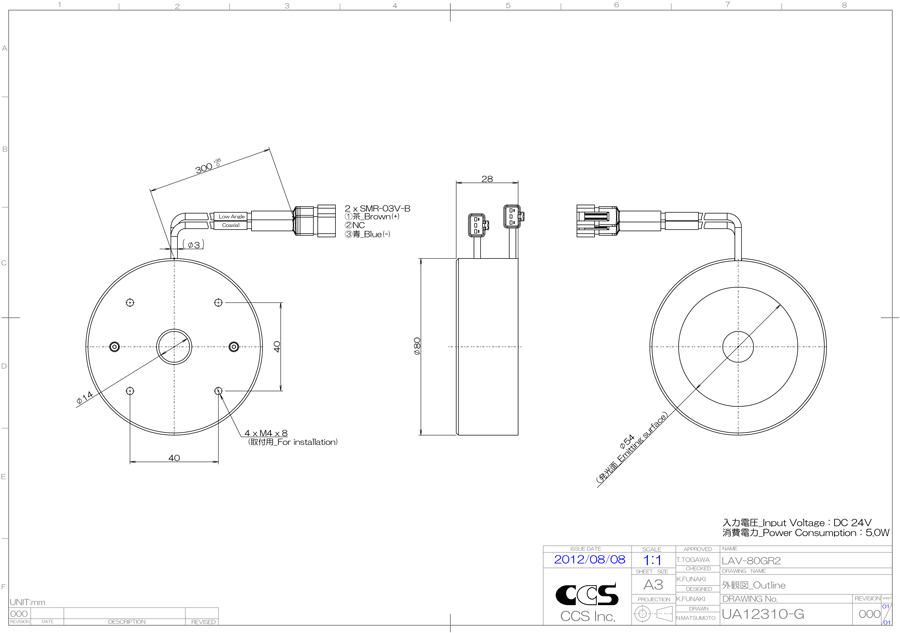

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-6024-2-P

  • PD4-6024-2-E

  • PD4-6024-4-P

  • PD4-6024-4-E

  • PD4-12024-2-P

  • PD4-12024-2-E

  • PD4-12024-4-P

  • PD4-12024-4-E

  • CD-VA10024-2P

  • CD-VA20024-4P

  • CD-VA10024-2PE

  • CD-VA20024-4PE

  • CN-1024-2-EPOE

  • CN-1024-4-EPOE

  • CN-4024-2-EIPT

  • POD-22024-4-PEI

  • POD-5024-2-PEI

  • PD3-3024-3-PI

  • PD3-3024-3-SI(A)

  • PD3-3024-3-EI(A)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-3024-3-PT

  • PD3-3024-3-ET(A)

  • PD3-5024-3-PT

  • PD3-5024-3-ET(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PD2-1024(A)

  • PD2-3024(A)

  • PD2-5024(A)

  • PD2-3024-2(A)

  • PD2-3024-4(A)

  • PD2-3024-8(A)

  • CC-ST-1024

  • PTU2-3024(A)

  • PB-2430-1

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-W-1

    Cable length: 1 m
    2-branch cable

  • FCB-W-2

    Cable length: 2 m
    2-branch cable

  • FCB-W-3

    Cable length: 3 m
    2-branch cable

  • FCB-W-5

    Cable length: 5 m
    2-branch cable

  • FCB-F-1

    Cable length: 1 m
    4-branch cable

  • FCB-F-2

    Cable length: 2 m
    4-branch cable

  • FCB-F-3

    Cable length: 3 m
    4-branch cable

  • FCB-F-5

    Cable length: 5 m
    4-branch cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

资料下载

综合目录(摘录) PDF图纸 DXF图纸 关于保证和环境管制 3D-CAD
