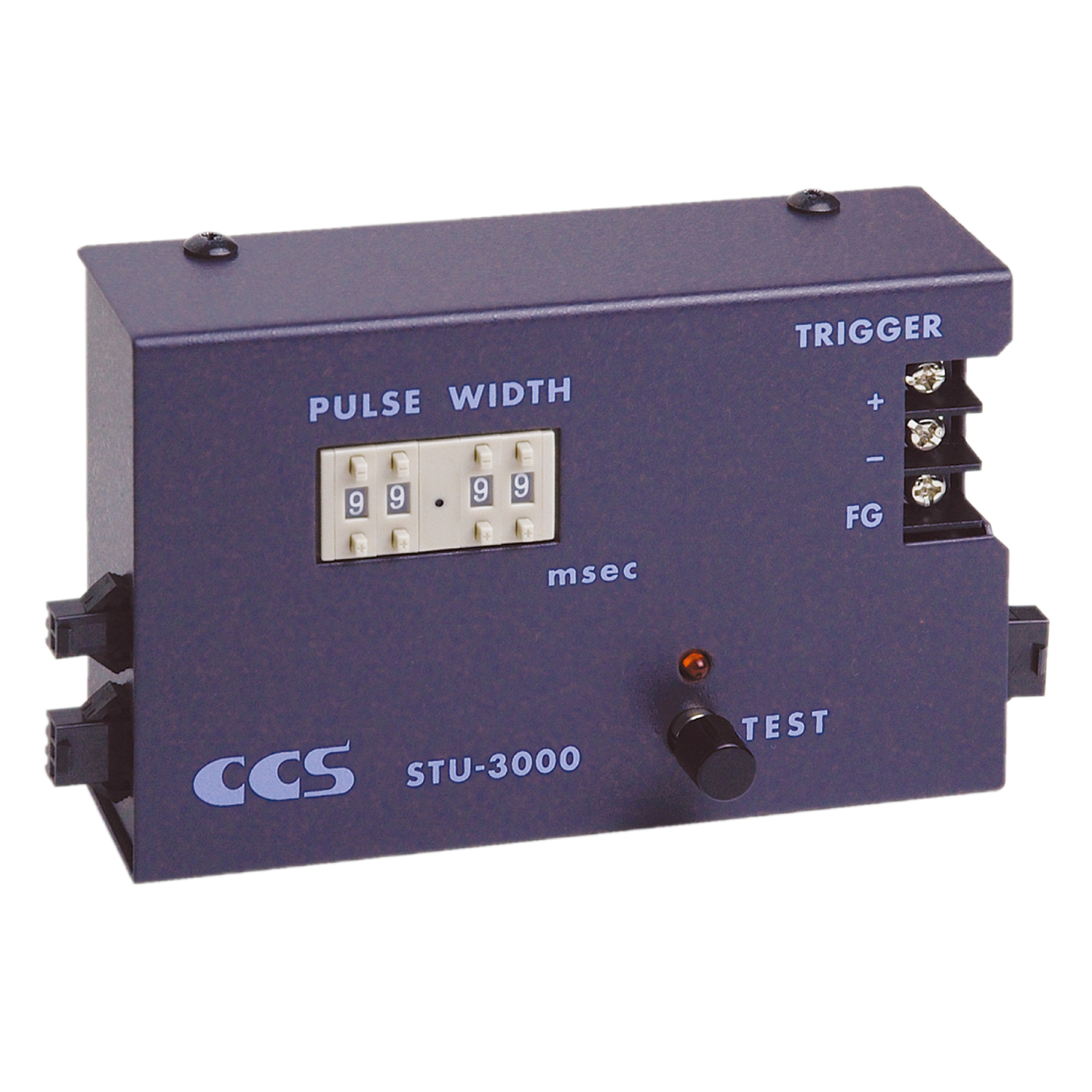

STU-3000
- 标准品
- 生产终止品
Not available from "Mar/31/2019."
This Strobe Unit can be used in combination with any one of the PD2-1012, PD2-3012, PD2-5012, and PD2-3012-2 or any one of the PD2-1024, PD2-3024, PD2-5024, and PD2-3024-2 Control Units.
The light pulse width can be controlled between 0.01 and 99.99 ms in increments of 0.01 ms.
This Strobe Unit measures 70 x 110 x 31 mm (width x depth x height).
产品详细信息
外观尺寸 | W 70 mm x D 110 mm x H 31 mm |
---|---|
适合光源(输出定额) | Depends on the connecting Control Unit. |
通道数 | 1 channel |
外壳材质 | Steel plate t1.0 |
外部控制输出 | Connection to a jack of the PD2-series Control Unit (Center: Signal line, Sleeve: GND) |
发光脉冲宽度 | 0.01 to 99.99 ms, Set with 4-digit thumbwheel switch, Resolution: 0.01 ms |
发光延迟 | 10μs max. |
输入端口 | Input connector: SMP-04V-BC (12 VDC or 24 VDC) Trigger input terminal: M3 terminal block 3P (Trigger input, FG connection) |
输出端口 | SMP-02V-BC (1: Output(+), 2: Output(-)) SMP-03V-BC (1: Output(+), 2: NC, 3: Output(-)) M3.5 jack (ON/OFF signal, Center: Signal line, Sleeve: GND) |
触发 | Photo-coupler insulated input: 5 to 24 VDC Current: 5 mA max., Pulse width: 20μ min. Wave rise/fall: 10μs max. (Ambiguous wave pattern is not allowed.) |
适合规格 | CE, RoHS |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air cooling |
重量 | 400 g max. |
附属品 | ON/OFF control cable, Instruction Guide, Power cable (12 VDC), Power cable (24 VDC) |
