OLF-LT-25SW
OLF-LT Series [Organic LED Lights]
Unprecedented thin design! Patent Filed
- Achieves the uniformity and brightness required for machine vision applications
- Expands the possibilities for lighting installation with a 3 mm thin design
- Lightweight, and low heat next-generation light source
- Notifies the user regarding recommended lighting replacement periods by connecting to a dedicated controller

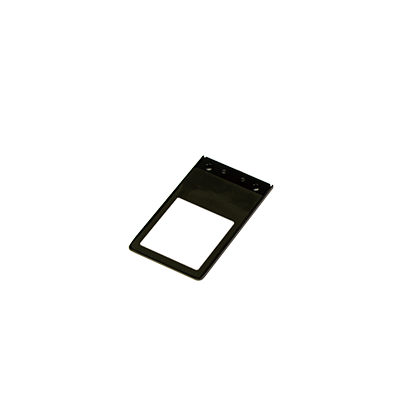

This Light Unit emits white light and measures 37.6 x 60.3 x 3 mm (width x depth x height).
The light-emitting surface measures 25 x 25 mm.

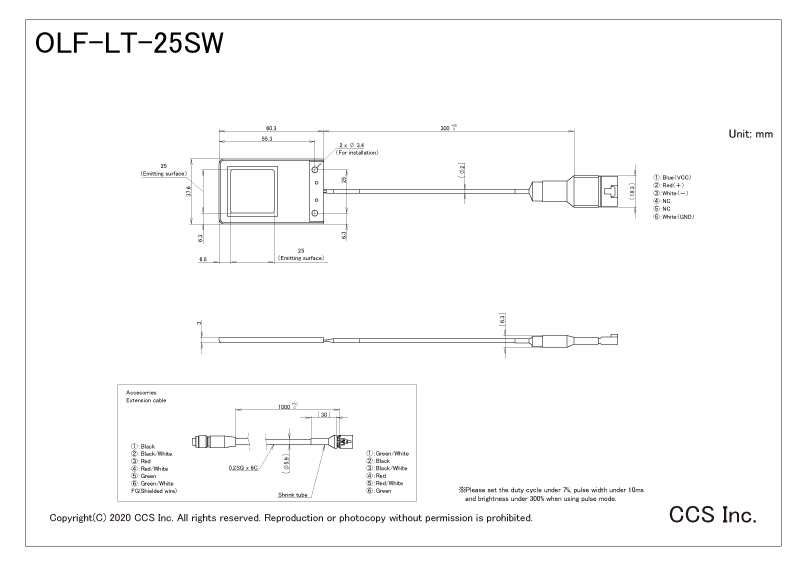

外形尺寸图(mm)
专用控制器
带预测性维护功能(使用寿命预测)的专用控制器
自动识别所搭载光源,获取如光源亮灭等的存储数据 *当超亮频闪模式使用OLF-LT-92时,使用OC-G-5646-2-ET.
OC-0736-1-ET
- 输入24V
- 1通道
- 常时发光、ON/OFF光源、频闪发光(可驱动超频式频闪发光)
- 可通过以太网,或面板上的按钮进行设定操作
- 频闪发光时间设定: 100µs ~10ms (以100µs为单位)
- 发光延迟时间设定: 2µs ~10ms (以100µs为单位)
- 重量:300g以下
OC-G-5646-2-ET
- 输入24V
- 2通道
- 常时发光、ON/OFF光源、频闪发光(可驱动超频式频闪发光)
- 可通过以太网,进行设定操作
- 频闪发光时间设定: 10µs ~10ms (以100µs为单位)
- 发光延迟时间设定: 2µs ~10ms (以1µs为单位)
- 重量:550g以下
搭载专用控制器的状态,有关光源的推荐更换时间*
光源寿命的3个阶段
100~30% | Good(没有问题) |
---|---|
20% | Lifetime warning(接近更换时间) |
0% | Lifetime expired (超过更换时间) |
* 连接光源和控制器,在通过局域网(LAN)连接控制器和计算机的状态下,可通过设定用网页浏览器进行确认。
光源的推荐更换时期
光源的设计时的期待寿命(常时发光时,调光100%、环境温度40℃、辐射量最低50%时的计算值)*并非保证值。 距离设计期待寿命还有20%时显示“Lifetime warning”、0%时显示“Lifetime expired”进行通知。 *有关各光源的设计期待寿命,请查阅光源规格。
专用线材
Optional extension cable
Model name | OLCB-2 | OLCB-3 | OLCB-5 |
---|---|---|---|
Cable length | 2 m | 3 m | 5 m |
Weight | 127 g max. | 182 g max. | 292 g max. |
OLCB external dimensions diagram(mm)
*A 1 m cable is supplied with this light.
资料下载
