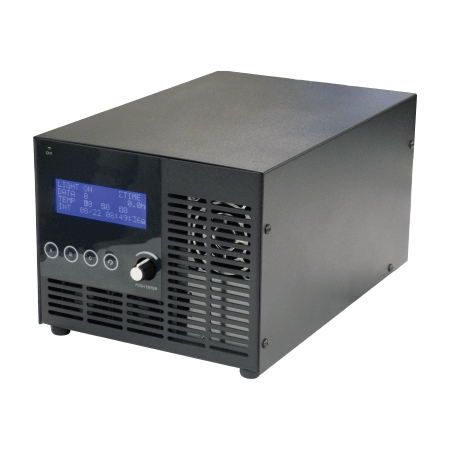

PSCC-J1A-nnn48-0401/0402

Dedicated Power Supplies for LN-GA and LN-HA Series

  • Constant-current power system.
  • Light intensity can be set in 256 or 1000 levels with digital setting.
  • Provides external light intensity control through parallel.
    RS-232C, and Ethernet communications.
  • Detects errors, such as LED burnout, LED overheat, power unit overheat, Control Unit fan stoppage, and abnormal voltage in LED power supply.
  • Selectable according to the output capacity of lighting(nnn = 300, 600, 10C, 15C).
    Please refer to “Connection image(LN-GA/LN-HA) ”.
Note
  • Available only in specific regions. Please contact your CCS sales representative for more information.

CCSxAItec

Specifications

LN-G Series PSCC-J1A-30048-0401 PSCC-J1A-60048-0401 PSCC-J1A-10C48-0401 PSCC-J1A-15C48-0401
LN-H Series PSCC-J1A-30048-0402 PSCC-J1A-60048-0402 PSCC-J1A-10C48-0402 PSCC-J1A-15C48-0402
Drive method Constant-current system
Light intensity control method Digital setting
Number of channels 1channel
Output voltage (rating) 24 to 48 VDC
Output current (rating) 400 mA / blocks
Output capacity light 231 W 480 W 807 W 1152 W
fan 20 W 70 W 70 W 110 W
Output connectors metal connector
(12 pins) x 2pcs.*		 metal connector
(37 pins) x 2pcs.		 metal connector
(37 pins) x 4pcs.		 metal connector
(37 pins) x 4pcs.
Power supply voltage(rating) 100 to 240 VAC, 50/60 Hz/td>
Maximum number of blocks 12 blocks 25 blocks 42 blocks 60 blocks
Power consumption (reference value) 480 VA 960 VA 1540 VA 2200 VA
Cooling method Forced air cooling with fans inside the Control Unit
External control method:
Connector name and format		 Parallel communications: D-sub15P connector (M2.6 screws),
RS232C communications: D-sub9P connector (#4-40 screws),
Ethernet communications: LAN connector / RJ45
External light
intensity control		 Parallel communications: Entire intensity control data,
RS232C communications: Entire intensity control data and light distribution data,
Ethernet communications: Entire intensity control data and light distribution data
External ON/OFF Photocoupler input through parallel comm. connector or command
communications in RS232C or Ethernet Communications Mode
Conformed standards CE, UKCA, RoHS, REACH
Weight 4.0 kg 5.4 kg 8.4 kg 9.4 kg

* There are individual connectors for temperature sensor (5 pins) and fan (2 pins) each.
* LN-GA Series (the end of the model name:0401)　* LN-HA Series (the end of the model name:0402)

外形尺寸图(mm)

PSCC-J1A-10C48--0401_0402Dimensions PSCC-J1A-15C48--0401_0402Dimensions PSCC-J1A-30048--0401_0402Dimensions PSCC-J1A-60048--0401_0402Dimensions

Connection image(LN-GA)

Model name Light cable connection Extension cables Control Units
LN-GA-100△-FN 2-pin fan connector
5-pin temperature sensor connector
12-pin metal connector
  • FCB-A-□-SM2 FCB-A-□-SM2
  • FCB-A-□-SM5 FCB-A-□-SM5
  • FCB-A-□-ME12 FCB-A-□-ME12
 PSCC-J1A-30048-0401
PSCC-J1A-30048-0401
LN-GA-200△-FN
LN-GA-300△-FN		 2-pin fan connector
5-pin temperature sensor connector
12-pin metal connector×2
  • FCB-A-□-SM2 FCB-A-□-SM2
  • FCB-A-□-SM5 FCB-A-□-SM5
  • FCB-A-□-ME12×2 FCB-A-□-ME12×2
LN-GA-400△-FN
LN-GA-500△-FN
LN-GA-600△-FN
 37-pin metal connector×2
  • FCB-A-□-ME37×2 FCB-A-□-ME37
 PSCC-J1A-60048-0401
PSCC-J1A-60048-0401
LN-GA-700△-FN PSCC-J1A-10C48-0401
PSCC-J1A-10C48-0401
LN-GA-800△-FN
LN-GA-900△-FN
LN-GA-1000△-FN		 37-pin metal connector×3
  • FCB-A-□-ME37×3 FCB-A-□-ME37×3
LN-GA-1100△-FN 37-pin metal connector×3
  • FCB-A-□-ME37×3 FCB-A-□-ME37×3
 PSCC-J1A-15C48-0401
PSCC-J1A-15C48-0401
LN-GA-1200△-FN
LN-GA-1300△-FN
LN-GA-1400△-FN
LN-GA-1500△-FN
 37-pin metal connector x 4
  • FCB-A-□-ME37×4 FCB-A-□-ME37×3
LN-GA-1600△-FN
LN-GA-1700△-FN
LN-GA-1800△-FN
 37-pin metal connector x 5
  • FCB-A-□-ME37×5 FCB-A-□-ME37×3
 PSCC-J1A-10C48-0401 x 2
PSCC-J1A-10C48-0401
LN-GA-1900△-FN
LN-GA-2000△-FN		 37-pin metal connector x 6
  • FCB-A-□-ME37×6 FCB-A-□-ME37×3
LN-GA-2100△-FN
LN-GA-2200△-FN
 37-pin metal connector x 6
  • FCB-A-□-ME37×6 FCB-A-□-ME37×3
 PSCC-J1A-15C48-0401 x 2
PSCC-J1A-15C48-0401
LN-GA-2300△-FN
LN-GA-2400△-FN
LN-GA-2500△-FN
LN-GA-2600△-FN
 37-pin metal connector x 7
  • FCB-A-□-ME37×7 FCB-A-□-ME37×3
LN-GA-2700△-FN
LN-GA-2800△-FN
LN-GA-2900△-FN
LN-GA-3000△-FN
 37-pin metal connector x 8
  • FCB-A-□-ME37×8 FCB-A-□-ME37×3

More Information

LN-GA Series Extension cables [for CCS AItec] FCB-A Series

External Control Cables EXCB2-15M-3 External Control Cables EXCB2-9F-9F-3-CR

Connection image(LN-HA)

Model name Light cable connection Extension cables Control Units
LN-HA-100SW
LN-HA-200SW
LN-HA-300SW
LN-HA-400SW
LN-HA-500SW
LN-HA-600SW		 5-pin temperature sensor connector
12-pin metal connector
  • FCB-A-□-SM5 DFCB-A-□-SM5
  • FCB-A-□-ME12 DFCB-A-□-ME12
 PSCC-J1A-30048-0402
PSCC-J1A-10C48-0402
LN-HA-700SW
LN-HA-800SW
LN-HA-900SW
LN-HA-1000SW		 5-pin temperature sensor connector
12-pin metal connector x 2
  • FCB-A-□-SM5 DFCB-A-□-SM5
  • FCB-A-□-ME12 x 2DFCB-A-□-ME12x2
LN-HA-1100SW
LN-HA-1200SW		 12-pin metal connector? x 2
5-pin temperature sensor connector
  • FCB-A-□-SM5 x 2 DFCB-A-□-SM5
  • FCB-A-□-ME12 DFCB-A-□-ME12
 PSCC-J1A-30048-0402
PSCC-J1A-30048-0402
LN-HA-1300SW
LN-HA-1400SW
LN-HA-1500SW		 37-pin metal connector
  • FCB-A-□-ME37 FCB-A-□-ME37×3
 PSCC-J1A-60048-0402
PSCC-J1A-60048-0402
LN-HA-1600SW
LN-HA-1700SW
LN-HA-1800SW
LN-HA-1900SW
LN-HA-2000SW
LN-HA-2100SW
LN-HA-2200SW
LN-HA-2300SW
LN-HA-2400SW
LN-HA-2500SW		 37-pin metal connector x 2
  • FCB-A-□-ME37 x 2 FCB-A-□-ME37×3
LN-HA-2600SW
LN-HA-2700SW
LN-HA-2800SW
LN-HA-2900SW
LN-HA-3000SW
 37-pin metal connector x 2
  • FCB-A-□-ME37 x 2 FCB-A-□-ME37×3
 PSCC-J1A-10C48-0402
PSCC-J1A-10C48-0402

More Information

LN-HA Series Extension cables [for CCS AItec] FCB-A Series

External Control Cables EXCB2-15M-3 External Control Cables EXCB2-9F-9F-3-CR
