LDL-222X42CIR

  • 特殊定制品

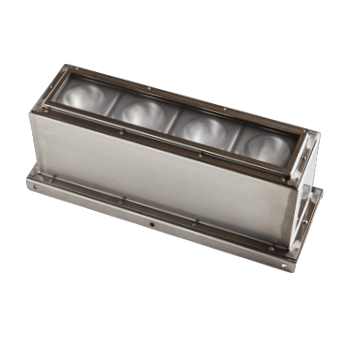

Convergent Type Hyperspectral Imaging Light LDL-222X42CIR
High intensity emission using convergent lamps.
Optimal for hyperspectral projects demanding high intensity, and for high speed SWIR applications.

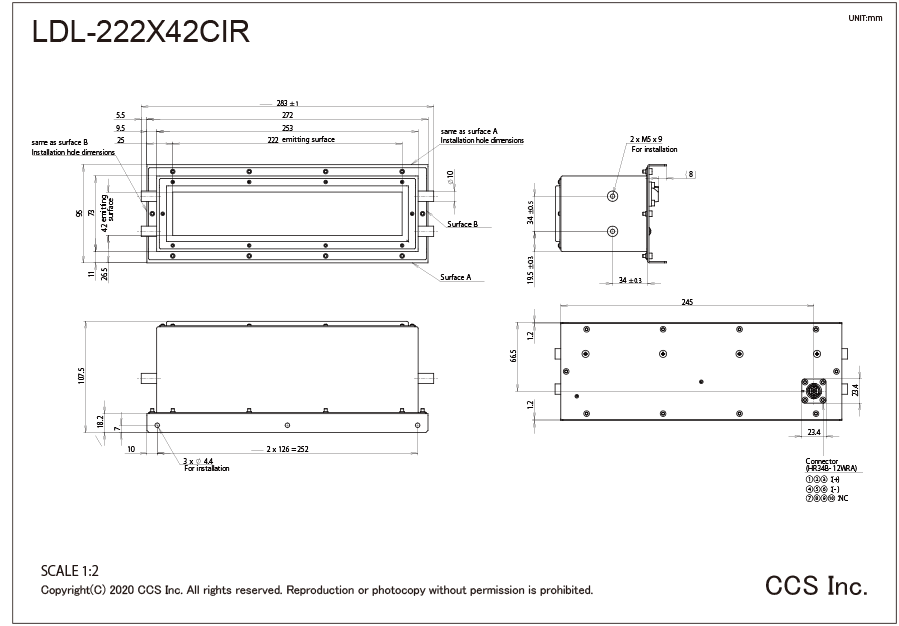

外形尺寸图(mm)

* Click to enlarge image.

选件・电源

Option Replacement Bulb

Option Cable : FCB-2-NC6HR10

Band-pass Filters : F-BP Series

We offer lens filters that transmit light in a specific wavelength range,
including bandpass filters for wavelengths of 1000 nm or more.
Please contact your sales representative for details.

Contact us

Halogen Lamp Dedicated Power Supply CB-HLG-300 (purchased product)

Halogen Lamp Dedicated Power Supply CB-HLG-300 (purchased product)
  • Supports Ethernet communication and RS-232C communication.
  • With burn-out error detection function.
  • With lighting accumulated time count function.
  • Output voltage 11.8 VDC ±0.2 V.
  • Output power 300 W Max.

    • Contact us

    Applicable Light Units LDL-222X42CIR, LDL-222X42CIR-LACL
    and custom-made products in the series above.
    *Cannot be used with TH-200X30CIR or LN-200CIR.

    warranty for these products differ from standard CCS products.please contact your local sales office for details.
