HLV3-22RD-2C-1220 / HLV3-22SW-2C-1220 / HLV3-22BL-2C-1220 / HLV3-22GR-2C-1220

  • 标准品

HLV3 Series Cylindrical Type Φ12-mm Light Emitting Tip(HLV3-22RD-2C-1220, HLV3-22SW-2C-1220, HLV3-22BL-2C-1220, HLV3-22GR-2C-1220).
This Light Unit emits LED light and has an outer diameter of 22 mm, a tip diameter of 12 mm, a light-emitting surface diameter of 6 mm, and a total length of 61 mm.

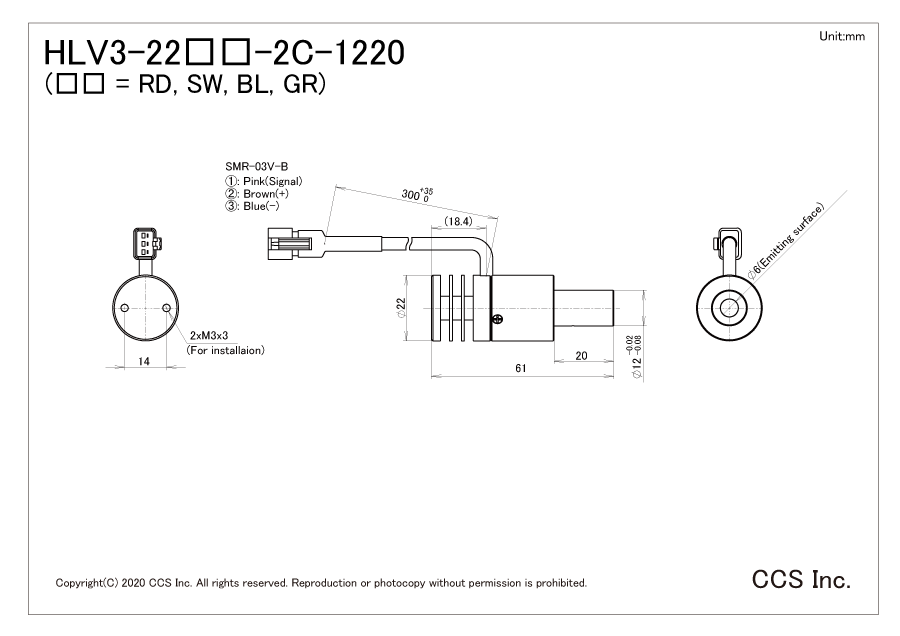

外形尺寸图(mm)

* Click to enlarge image.

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

电源

Control Unit Guide(PDF)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • CC-PJ-0707

  • PJ-1505-2CA

  • PJ-1505-3CA

  • PJ-1505-2CD24

  • PJ-1505-3CD24

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
