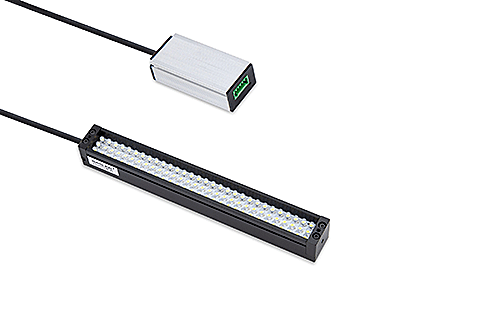

BCL-150X15W / BCL-150X15R / BCL-150X15B

BCL-150X15x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models. Control lighting mode, lighting time, and dimming of lighting through the camera software.
The LED emission colors are red, blue and white, and the emission surface size is 150 x 15 mm.
Diffuser DF-BCL-150X15 and polarizing plate PL-BCL-150X15 are available as options.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />

Controller Details

Connectors Controller part: Applicable Terminal Block Connector: Wurth Elektronik WR-TBL series 691381000006) Wurth Elektronik WR-TBL series 691382010006
Drive method Constant-voltage system
Intensity control method PWM control
PWM frequency 100 kHz
Cable length Light cable: 500 mm Camera cable: 3 m max.
CE marking EMC Standard: Conforms to EN61000-6:2019、EN61000-6-:2007+A1:2011
Case material Aluminum alloy, Resin

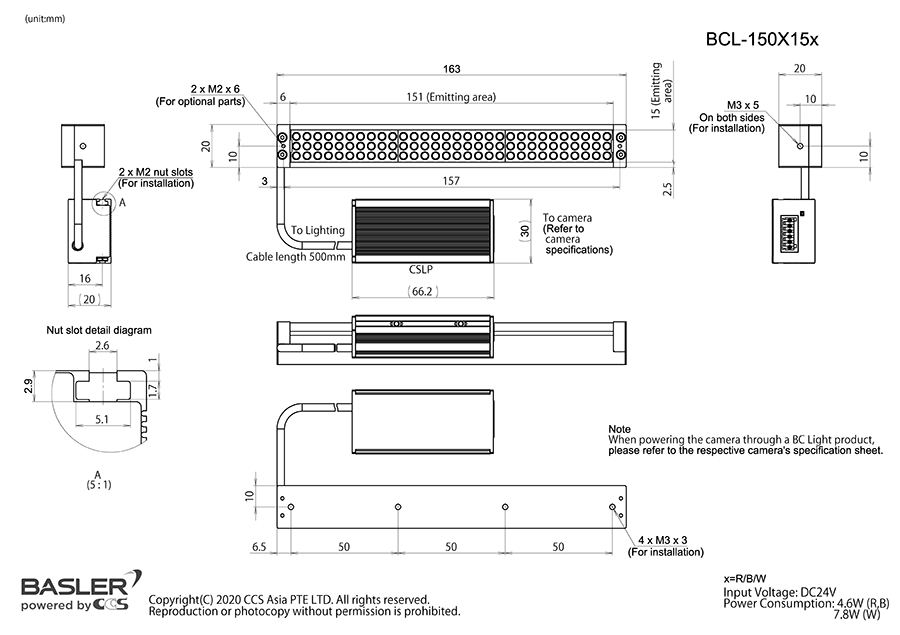

外形尺寸图(mm)

* Click to enlarge image.

选件

  • DF-BCL-150X15

  • PL-BCL-150X15

  • BC-CBL-3

  • BK-BCL
