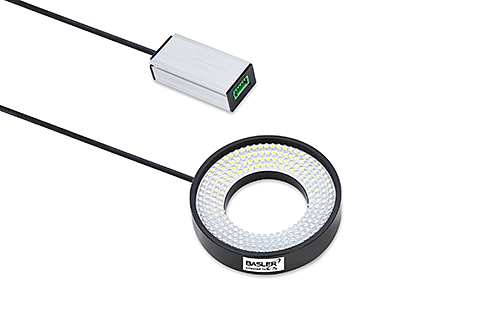

BCR-90W / BCR-90R / BCR-90B
BCR-90x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models. Control lighting mode, lighting time, and dimming of lighting through the camera software.
The LED emission colors are red, blue and white, and the emission surface size is 90 mm.
Diffuser DF-BCR-90 and polarizing plate PL-BCR-90 are available as options.
Controller Details
Connectors | Controller part: Applicable Terminal Block Connector: Wurth Elektronik WR-TBL series 691381000006) Wurth Elektronik WR-TBL series 691382010006 |
---|---|
Drive method | Constant-voltage system |
Intensity control method | PWM control |
PWM frequency | 100 kHz |
Cable length | Light cable: 500 mm Camera cable: 3 m max. |
CE marking | EMC Standard: Conforms to EN61000-6:2019、EN61000-6-:2007+A1:2011 |
Case material | Aluminum alloy, Resin |

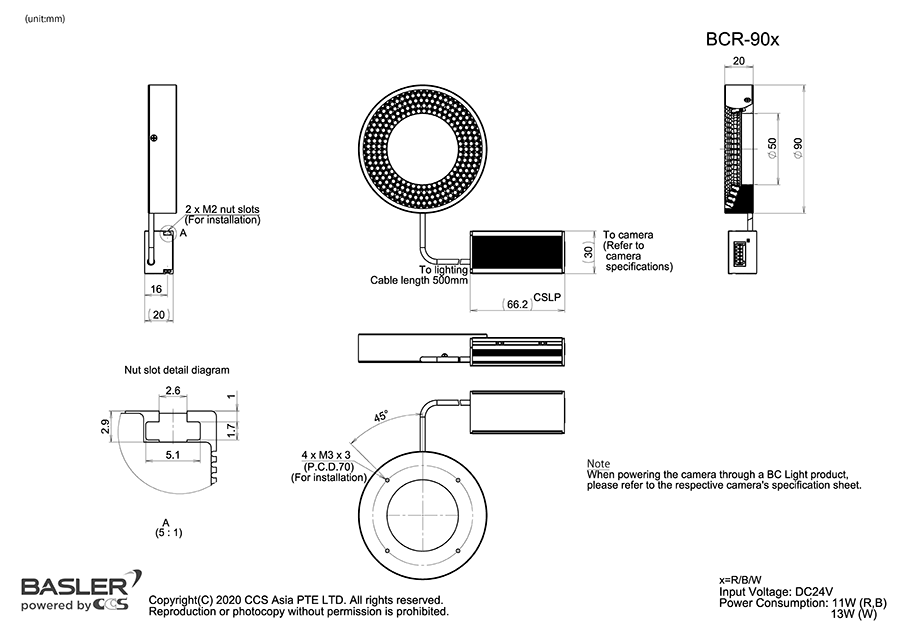

外形尺寸图(mm)
选件
资料下载
