HLV-22IR120

  • 标准品

Spot-type infrared illumination HLV-22IR120 with an outer diameter of 22 mm, a total length of 50 mm, a tip diameter of 8 mm, a light emitting surface of 6.4 mm, and a peak wavelength of 1200 nm.

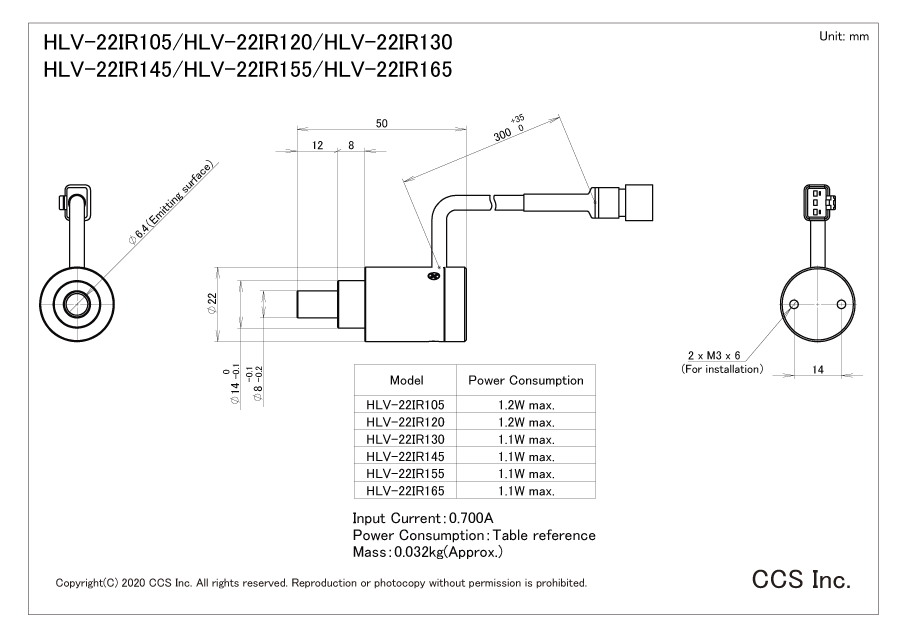

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-6024-2-P

  • PD4-6024-2-E

  • PD4-6024-4-P

  • PD4-6024-4-E

  • PD4-12024-2-P

  • PD4-12024-2-E

  • PD4-12024-4-P

  • PD4-12024-4-E

  • CD-VA10024-2P

  • CD-VA20024-4P

  • CD-VA10024-2PE

  • CD-VA20024-4PE

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PJ-1505-3CA

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

  • PJ-1505-2CA

  • PJ-1505-2CD24

  • PJ-1505-3CD24

  • CC-PJ-0707

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

  • FCB-HLV3-10

  • FRCB-HLV3-10
