HLDL3-900X28BL-DF-N / HLDL3-900X28BL-DF-M / HLDL3-900X28BL-DF-W

  • 标准品

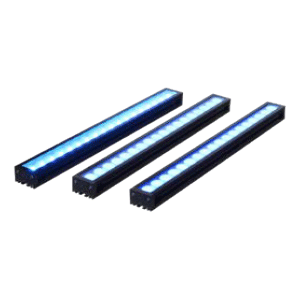

Bar type blue LED light for long distance illumination.
Three types of light directivity depending on the application conditions:
・Narrow type (HLDL3-900X28BL-DF-N)
・Medium type (HLDL3-900X28BL-DF-M)
・Wide type (HLDL3-900X28BL-DF-W)
Measures W 920 mm x D 44 mm x H 30 mm, the light-emitting surface measures 900 x 28 mm.

产品详细信息

LED发光颜色 Blue
峰值发光波长 465 nm typ.
外观尺寸 W 920 mm x D 44 mm x H 30 mm
输入电压 24 VDC
消耗功率 88 W max.
极性, 信号 1: (+), 2: (-)
线缆长度 300 mm
外壳材质 Aluminum alloy
输入端口 ELP-02V
适合规格 CE, UKCA, RoHS, REACH
IEC 62471
HLDL3-900X28BL-DF-N: High risk
HLDL3-900X28BL-DF-M: Mod risk
HLDL3-900X28BL-DF-W: Mod risk
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 HLDL3-900X28BL-DF-N: 1800 g max.
HLDL3-900X28BL-DF-M: 1800 g max.
HLDL3-900X28BL-DF-W: 1860 g max.
附属品 使用说明书
备注 Please inquire if you would like to use in combination with a strobe control unit (overdrive type)

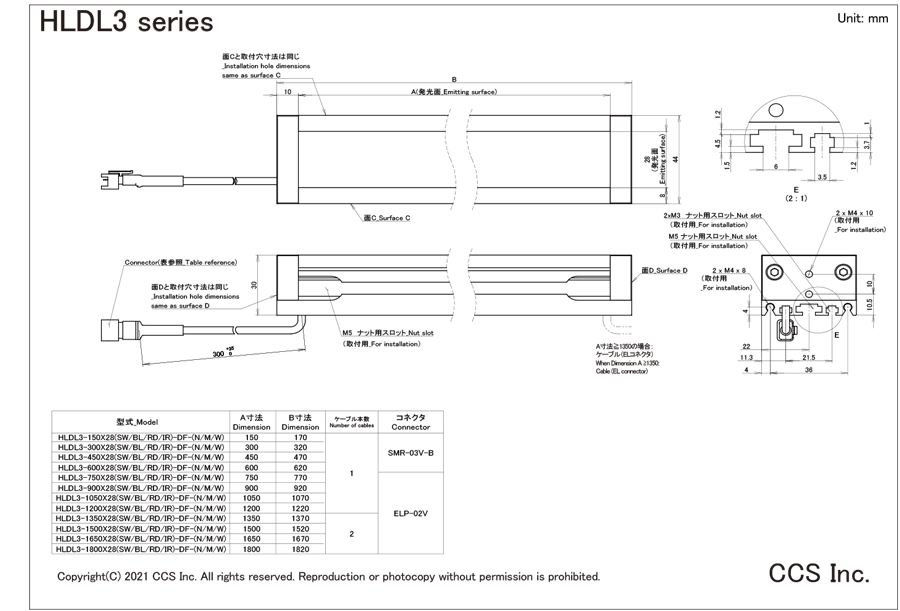

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-12024-4-E

  • PD4-12024-4-E-NC

  • PD4-12024-4-P

  • PD4-12024-4-P-NC

  • PD4-12024-2-E

  • PD4-12024-2-E-NC

  • PD4-12024-2-P

  • PD4-12024-2-P-NC

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PSB3-30024

  • PSB4-30024-PEI

  • PSB4-60024-2-PEI

选件

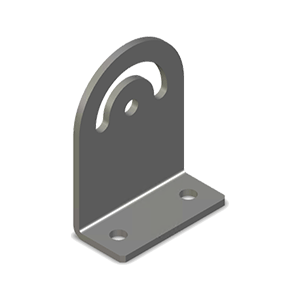

  • BK-HLDL3

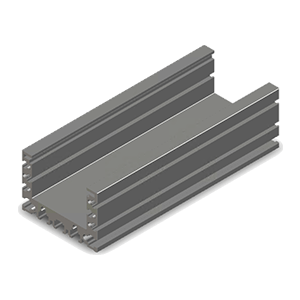

  • AD-HLDL3

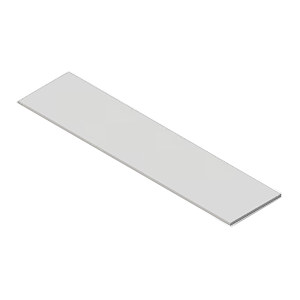

  • DF-HLDL3-900 / DF-HLDL3-900-HU

  • PL-HLDL3-900-VE / PL-HLDL3-900-HO

线缆

  • FCB-1-EL2

  • FCB-2-EL2

  • FCB-3-EL2

  • FCB-5-EL2

  • FCB-10-EL2

  • FCB-15-EL2
