LNSD-400SW(A)

  • 标准品

This Light Unit emits white light and measures W 430 x D 30 x H 32.5 mm.
The light-emitting surface measures 400 x 15 mm.
High luminance type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

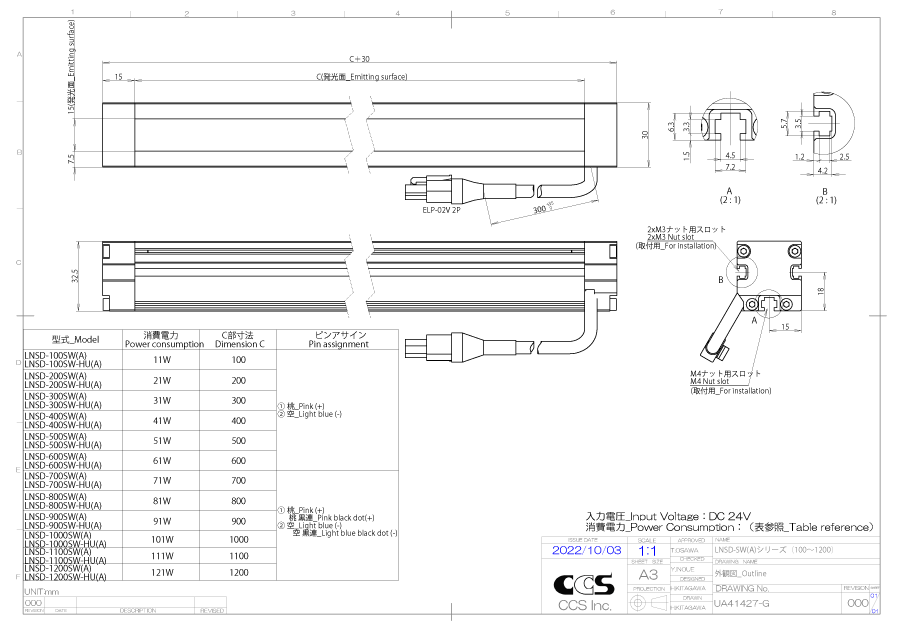

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-12024-4-E

  • PD4-12024-4-P

  • PD4-12024-2-E

  • PD4-12024-2-P

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PSB3-30024

  • PSB4-30024-PEI

  • PSB4-60024-2-PEI

线缆

  • FCB-1-EL2

  • FCB-2-EL2

  • FCB-3-EL2

  • FCB-5-EL2

  • FCB-10-EL2

  • FCB-15-EL2

资料下载

综合目录(摘录) PDF图纸 DXF图纸 使用说明书 关于保证和环境管制 3D-CAD
