HLV2 Series
Not available from "Dec/31/2021".
The recommended alternative series is HLV3 Series L-Type.
The lightweight and compact Spot Light achieved high output through its unique optical design.

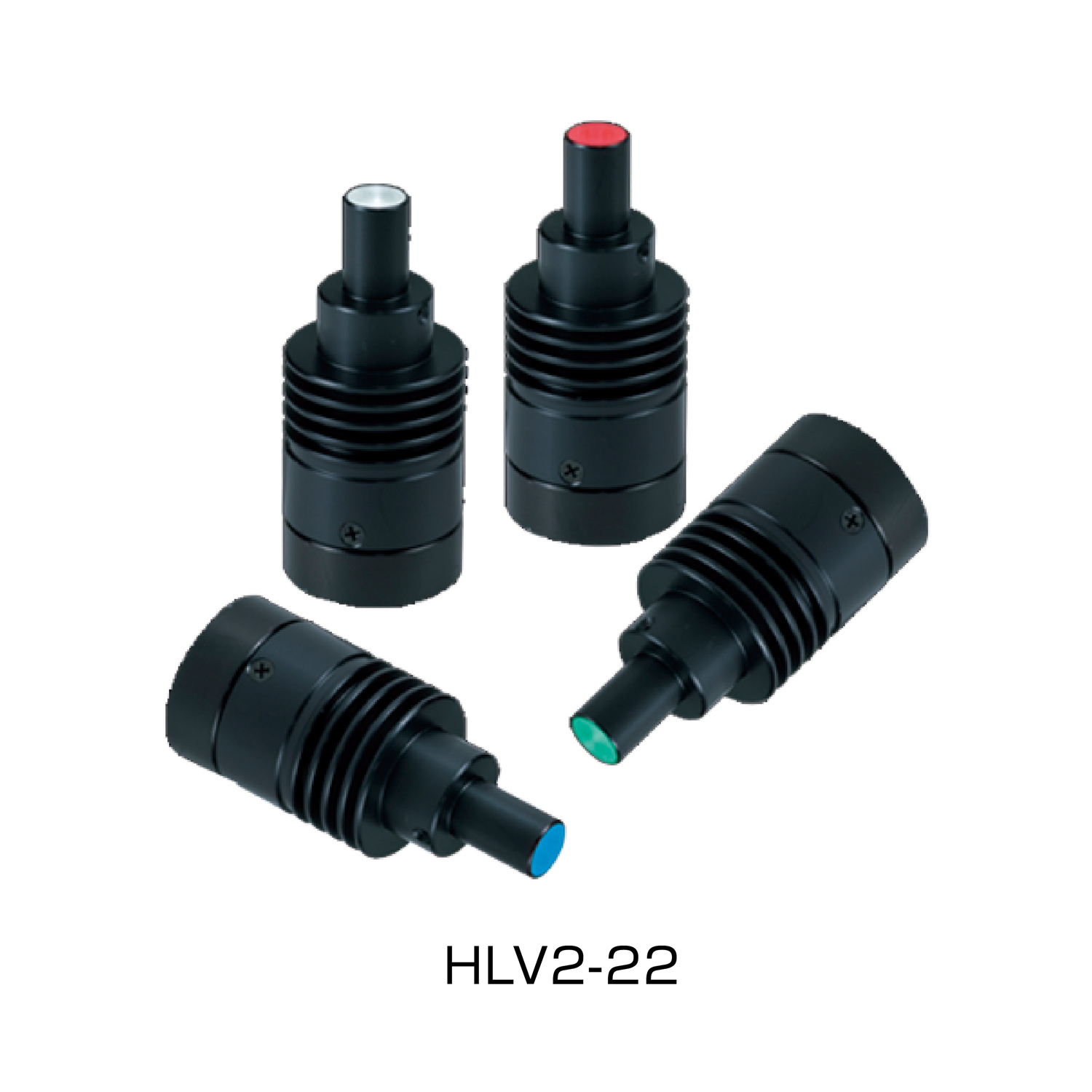

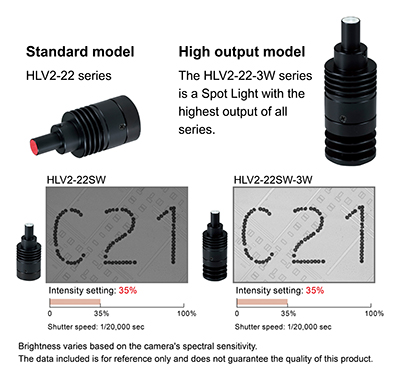

HLV2-22: Standard model
HLV2-14: Compact model
HLV2-22-3W: High output model
The HLV2 series provides a selection to match your usage
environment and application.
Download Pamphlet PDF
Note: These lights require the Control Units provided with the output connectors for Spotlights.
The available Control Units vary depending on the input current of lights.
For details, refer to the "Power Supplies" column on the page describing each light model name.
特点
Lineup with selection to match your needs
The HLV2 series provides a selection to match your usage environment and application. The LED color has a lineup of red, white, blue, and green.

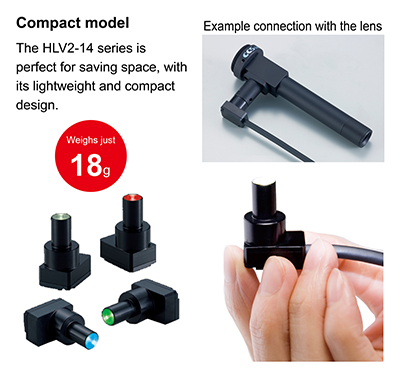

HLV-14 series, with a lightweight and compact design
Spot Lights that achieve high output
The lightweight and compact Spot Light achieved high output through its unique optical design.
HLV2-22-3W series, a high output model
Lineup offering a selection to match your needs

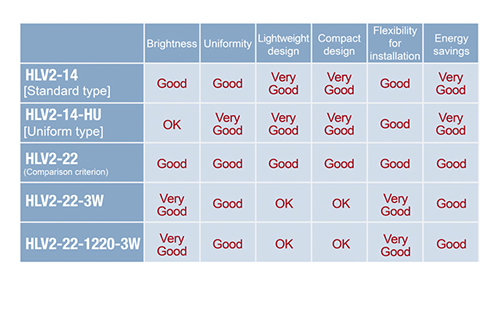

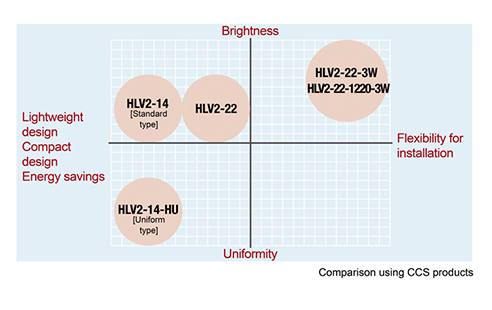

HLV2 series evaluation chart
HLV2 series evaluation graph

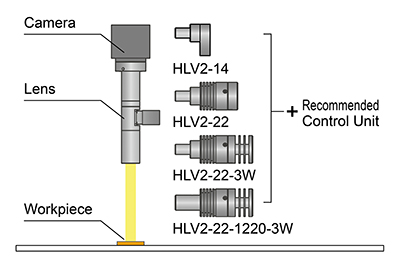

Example configuration
Revised the optical system to increase the emitting efficiency for this high output Spot Light.
HLV2 series
特性 ・数据

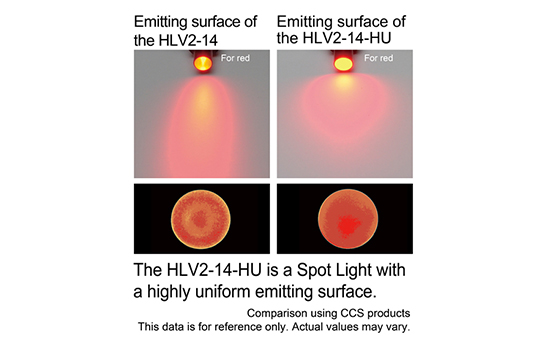

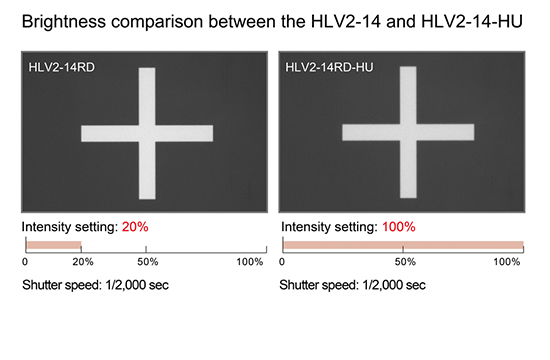

Comparison of data for the HLV2-14 series
LED properties

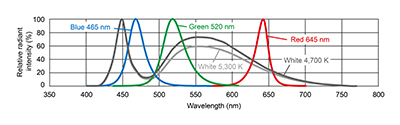

Spectral distribution
CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.
The data included is for reference only. Actual values may vary.

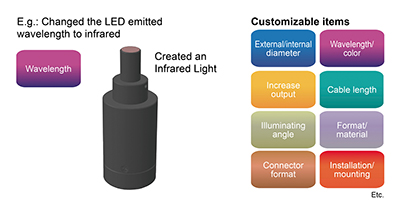

特殊定制例
Please contact your CCS sales representative.
成像实例

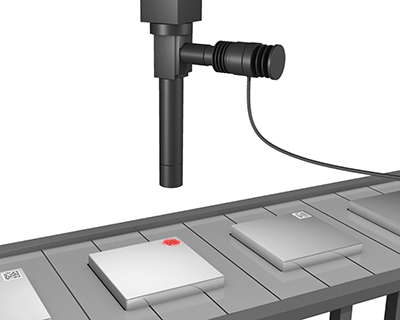

Imaging of 2-dimensional code
Description | Code reading |
---|---|
Workpiece | 2-dimensional code |
New lighting | HLV2-22RD-3W |

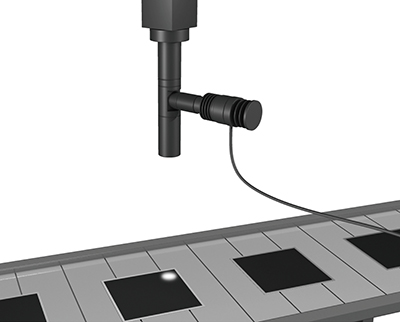

Imaging of an alignment mark
Description | Positioning |
---|---|
Workpiece | Alignment mark |
Light Unit in use | HLV2-22SW-3W |
