HL Series

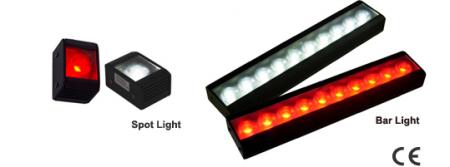

High-Power Spot Lights / Bar Lights

特点

  • Controller and 3 m cable included
  • 24 V input power to controller
  • Controller drives continuous and non-overdriven strobe illumination
  • Robust aluminum housing with superior heat transfer properties
  • Efficient thermal management through heat fin design
  • Adjustable mounting M5 nuts via (2) nut channels on back face
  • RoHS compliant
  • CE certified

特性・数据

Common specifications

LED color Red, white, blue, green
Peak wavelength Red: 635 nm, Blue: 470 nm, Green: 530 nm, Infrared: 850 nm
Power consumption 2.8 W max.
Polarity & signal 1: Light ID In, 2: LED +, 3: LED-, 4: Light ID Out
Cooling method Natural air cooling
Operating temperature
and humidity 		Temperature: 0 to 40°C, Humidity: 20% to 85%RH
(with no condensation)
Storage temperature
and humidity		 Temperature: －20 to 60°C, Humidity: 20% to 85%RH
(with no condensation)
