LN-HA-nSW

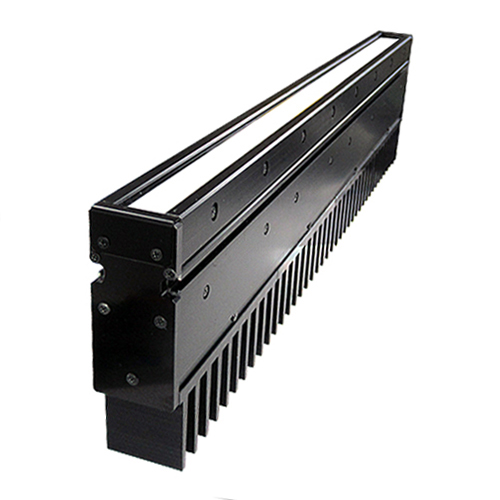

High-Illuminance Slim Line Lights

Compact but High-Performance
Industry-leading high illuminance with slim and fan-less case design
Light emitting surface length up to 3 m
Fan-less cooling system suitable for use in a clean room environment, such as for medical equipment production

Note

"n" in the model name indicates the light emitting surface length (in 100 mm units)
Available only in specific regions. Please contact your CCS sales representative for more information

登录到我的页面-已选产品列表

LED发光颜色	White
外壳材质	Aluminum alloy
适合规格	CE, UKCA, RoHS, IEC 62471 (Low risk)
使用温湿度	Temperature: 0 to 40℃, Humidity: 30% to 85%RH (with no condensation)
保存温湿度	Temperature: 0 to 50℃, Humidity: 30% to 85%RH (with no condensation)
冷却方式	Natural air-cooling

产品详细信息 Dimensions and specifications Connection image 资料下载

Dimensions and specifications

Dimensions

LN-HA_Dimensions

Please check the download document for details of the external dimensions.
Please check specifications for size details.

Specifications

Model name	LxWxH (mm)	Emitting surface length (Dimension A)^*1 (mm)	D1	D2	Weight (kg)	Number of LED blocks^*2	Power consumption (Including for fans) (W)	Required light cable connection	Applicable Control Units
LN-HA-100SW	115x30x99	100	10	5	0.45	1	20	12-pin metal connector、 5-pin temperature sensor connector	PSCC-J1A-30048-0402
LN-HA-200SW	215x30x99	200	10	5	0.95	2	39
LN-HA-300SW	315x30x99	300	10	5	1.35	3	58
LN-HA-400SW	415x30x99	400	10	5	1.75	4	77
LN-HA-500SW	515x30x99	500	10	5	2.15	5	96
LN-HA-600SW	615x30x99	600	10	5	2.55	6	116
LN-HA-700SW	727x30x99	700	16	11	3	7	135	12-pin metal connector x 2pcs.、 5-pin temperature sensor connector
LN-HA-800SW	827x30x99	800	16	11	3.4	8	154
LN-HA-900SW	927x30x99	900	16	11	3.8	9	173
LN-HA-1000SW	1,027x30x99	1,000	16	11	4.2	10	192

Model name^*1	LxWxH (mm)	Emitting surface length (Dimension A)^*2 (mm)	D1	D2	Weight (kg)	Number of LED blocks^*3	Power consumption (Including for fans) (W)	Required light cable connection	Applicable Control Units
LN-HA-1100SW	1,127x30x99	1,100	16	11	4.6	11	212	12-pin metal connector? x 2pcs. 5-pin temperature sensor connector	PSCC-J1A-30048-0402
LN-HA-1200SW	1,227x30x99	1,200	16	11	5.0	12	231		PSCC-J1A-30048-0402
LN-HA-1300SW	1,331x30x99	1,300	20	11	5.4	13	250	37-pin metal connector	PSCC-J1A-60048-0402
LN-HA-1400SW	1,431x30x99	1,400	20	11	5.8	14	269
LN-HA-1500SW	1,531x30x99	1,500	20	11	6.2	15	288
LN-HA-1600SW	1,631x30x99	1,600	20	11	6.6	16	308	37-pin metal connector x 2pcs.
LN-HA-1700SW	1,731x30x99	1,700	20	11	7.0	17	327
LN-HA-1800SW	1,831x30x99	1,800	20	11	7.4	18	346
LN-HA-1900SW	1,931x30x99	1,900	20	11	7.8	19	365
LN-HA-2000SW	2,031x30x99	2,000	20	11	8.2	20	384

Model name^*1	LxWxH (mm)	Emitting surface length (Dimension A)^*2 (mm)	D1	D2	Weight (kg)	Number of LED blocks^*3	Power consumption (Including for fans) (W)	Required light cable connection	Applicable Control Units
LN-HA-2100SW	2,131x30x99	2,100	20	11	8.6	21	404	37-pin metal connector x 2pcs.	PSCC-J1A-60048-0402
LN-HA-2200SW	2,231x30x99	2,200	20	11	9.0	22	423
LN-HA-2300SW	2,331x30x99	2,300	20	11	9.4	23	442
LN-HA-2400SW	2,431x30x99	2,400	20	11	9.8	24	461
LN-HA-2500SW	2,531x30x99	2,500	20	11	10.2	25	480
LN-HA-2600SW	2,631x30x99	2,600	20	11	10.6	26	500	37-pin metal connector x 2pcs.	PSCC-J1A-10C48-0402
LN-HA-2700SW	2,731x30x99	2,700	20	11	11.0	27	519
LN-HA-2800SW	2,831x30x99	2,800	20	11	11.4	28	538
LN-HA-2900SW	2,931x30x99	2,900	20	11	11.8	29	557
LN-HA-3000SW	3,031x30x99	3,000	20	11	12.2	30	576

*1 The available emitting surface lengths are in units of 100 mm.
*2 An LED block is a batch of LEDs implemented on the same circuit. This is also the minimum scope of settings for light intensity and alarm on the dedicated power supply, PSCC-J1A series.To repair the Light Unit , customers can selectively replace the Implementation Board including the LED blocks.　If this replacement is required, please contact your local sales representative.

Notes:

These Light Units conform to the safety standard EN 62471.
Input voltage : DC48 V

Connection image

Model name	Light cable connection	Extension cables	Control Units
LN-HA-100SW LN-HA-200SW LN-HA-300SW LN-HA-400SW LN-HA-500SW LN-HA-600SW	5-pin temperature sensor connector 12-pin metal connector	FCB-A-□-SM5 FCB-A-□-ME12	PSCC-J1A-30048-0402
LN-HA-700SW LN-HA-800SW LN-HA-900SW LN-HA-1000SW	5-pin temperature sensor connector 12-pin metal connector x 2	FCB-A-□-SM5 FCB-A-□-ME12 x 2	PSCC-J1A-30048-0402
LN-HA-1100SW LN-HA-1200SW	12-pin metal connector? x 2 5-pin temperature sensor connector	FCB-A-□-SM5 x 2 FCB-A-□-ME12	PSCC-J1A-30048-0402
LN-HA-1300SW LN-HA-1400SW LN-HA-1500SW	37-pin metal connector	FCB-A-□-ME37	PSCC-J1A-60048-0402
LN-HA-1600SW LN-HA-1700SW LN-HA-1800SW LN-HA-1900SW LN-HA-2000SW LN-HA-2100SW LN-HA-2200SW LN-HA-2300SW LN-HA-2400SW LN-HA-2500SW	37-pin metal connector x 2	FCB-A-□-ME37 x 2	PSCC-J1A-60048-0402
LN-HA-2600SW LN-HA-2700SW LN-HA-2800SW LN-HA-2900SW LN-HA-3000SW	37-pin metal connector x 2	FCB-A-□-ME37 x 2	PSCC-J1A-10C48-0402

More Information

Dedicated Power Supplies [for CCS AItec] PSCC-J1A Series

Extension cables [for CCS AItec] FCB-A Series

External Control Cables EXCB2-15M-3 External Control Cables EXCB2-9F-9F-3-CR
