LN-EAA/LN-EBA Series (CCS AItec)
- Light from the LEDs is scattered inside the light unit to evenly illuminate the whole surface of the workpiece,
reducing overexposure and underexposure - 16 sizes each in 3 colors (red, white and blue) for a line-up with 96 models
- Light emitting surface length up to 1,600 mm
- Fan-less cooling system suitable for use in a clean room environment such as for printed circuit board production
* ”△” mark is the model name indicates the LED color with one of the following letters : SW(White), RD(Red), or BL (Blue).
* ”n” is the model name indicates the emitting surface length from 100 mm to 1,600 mm.
* This is the CCS AItec product. Warranty for this product differs from CCS standard lighting. Contact your local sales office for details.

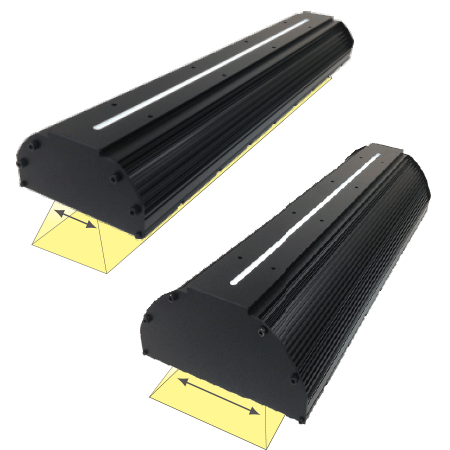

Features of LN-EAA/LN-EBA
High-Illuminance Tunnel-Dome Lights
LN-EAA / LN-EBA Series
Opening width:50 mm
Opening width:100 mm
Imaging Example / Data
Appearance Inspection of Telephones
Conventional line light
Direct light on the uneven surface causes overexposure and underexposure, resulting in loss of detail.
Direct light on the uneven surface causes overexposure and underexposure, resulting in loss of detail.
LN-EAA-series light unit
Uniformly diffused light reduces overexposure and underexposure.
Uniformly diffused light reduces overexposure and underexposure.
Other Applications

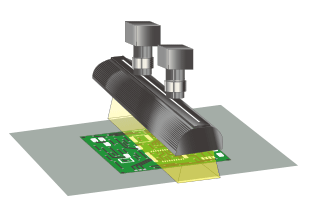

Inspection of Solder Resist on Printed Circuit Boards
Data
The data included is for reference only. Actual values may vary.

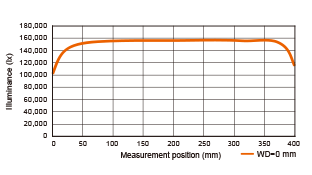

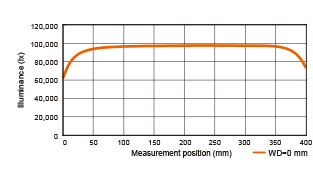

Illuminance Distribution
(LN-EAA-400SW)
(LN-EAA-400SW)
Illuminance Distribution
(LN-EBA-400SW)
(LN-EBA-400SW)
Lineup
| Model name*1 | LED color | Emitting surface length (Dimension A) |
Camera window length (Dimension B) |
(Dimension C) | Full length (Dimension L) |
Power consumption （max.） |
Light cable connection | Control Units | Weight |
|---|---|---|---|---|---|---|---|---|---|
| LN-EAA-100△ | Red White Blue |
100mm | 65mm | 21 mm | 129mm | 24V / 21 W | FCB-AI-☐-C1*3 | PSB3-30024 PSB4-30024-PEI PSB4-60024-2-PEI |
418 g |
| LN-EAA-200△ | 200mm | 165mm | 229mm | 24V / 40 W | FCB-AI-☐-C2*3 | 756g | |||
| LN-EAA-300△ | 300mm | 265mm | 329mm | 24V / 60 W | 1,093g | ||||
| LN-EAA-400△ | 400mm | 365mm | 429mm | 24V / 79 W | 1,430g | ||||
| LN-EAA-500△ | 500mm | 465mm | 529mm | 24V / 98 W | 1,767g | ||||
| LN-EAA-600△ | 600 mm | 565 mm | 629 mm | 24 V / 118 W | 2,105 g | ||||
| LN-EAA-700△ | 700mm | 665mm | 729mm | 24V / 137 W | FCB-AI-☐-C3*3 | 2,442g | |||
| LN-EAA-800△ | 800mm | 765mm | 829mm | 24V / 157 W | 2,779g | ||||
| LN-EAA-900△ | 900mm | 865mm | 43 mm | 951mm | 24V / 176 W | FCB-AI-☐-C4*3 | 3,211g | ||
| LN-EAA-1000△ | 1,000mm | 965mm | 1,051mm | 24V / 195 W | 3,549g | ||||
| LN-EAA-1100△ | 1,100mm | 525 mmx 2pcs.*2 + 15 mm | 1,151mm | 24V / 215 W | 3,886g | ||||
| LN-EAA-1200△ | 1,200mm | 575 mmx 2pcs.*2 + 15 mm | 1,251mm | 24V / 234 W | 4,223g | ||||
| LN-EAA-1300△ | 1,300mm | 625 mmx 2pcs.*2 + 15 mm | 1,351mm | 24V / 254 W | 4,560g | ||||
| LN-EAA-1400△ | 1,400mm | 675 mmx 2pcs.*2 + 15 mm | 1,451mm | 24V / 273 W | 4,898g | ||||
| LN-EAA-1500△ | 1,500mm | 725 mmx 2pcs.*2 + 15 mm | 1,551mm | 24V / 292 W | 5,235g | ||||
| LN-EAA-1600△ | 1,600 mm | 775 mmx 2pcs.*2 + 15 mm | 1,651 mm | 24 V / 312 W | FCB-AI-☐-C5*3 | PSB4-60024-2-PEI | 5,572 g | ||
| Model name*1 | LED color | Emitting surface length (Dimension A) |
Camera window length (Dimension B) |
(Dimension C) | Full length (Dimension L) |
Power consumption （max.） |
Light cable connection | Control Units | Weight |
| LN-EBA-100△ | Red White Blue |
100 mm | 65 mm | 21 mm | 129 mm | 24 V / 21 W | FCB-AI-☐-C1*3 | PSB3-30024 PSB4-30024-PEI PSB4-60024-2-PEI |
599 g |
| LN-EBA-200△ | 200 mm | 165 mm | 229 mm | 24 V / 40 W | FCB-AI-☐-C2*3 | 1,043 g | |||
| LN-EBA-300△ | 300 mm | 265 mm | 329 mm | 24 V / 60 W | 1,486 g | ||||
| LN-EBA-400△ | 400 mm | 365 mm | 429 mm | 24 V / 79 W | 1,930 g | ||||
| LN-EBA-500△ | 500 mm | 465 mm | 529 mm | 24 V / 98 W | 2,374 g | ||||
| LN-EBA-600△ | 600 mm | 565 mm | 629 mm | 24 V / 118 W | 2,818 g | ||||
| LN-EBA-700△ | 700 mm | 665 mm | 729 mm | 24 V / 137 W | FCB-AI-☐-C3*3 | 3,261 g | |||
| LN-EBA-800△ | 800 mm | 765 mm | 829 mm | 24 V / 157 W | 3,705 g | ||||
| LN-EBA-900△ | 900 mm | 865 mm | 43 mm | 951 mm | 24 V / 176 W | FCB-AI-☐-C4*3 | 4,295 g | ||
| LN-EBA-1000△ | 1,000 mm | 965 mm | 1,051 mm | 24 V / 195 W | 4,739 g | ||||
| LN-EBA-1100△ | 1,100 mm | 525 mmx 2pcs.*2 + 15 mm | 1,151 mm | 24 V / 215 W | 5,183 g | ||||
| LN-EBA-1200△ | 1,200 mm | 575 mmx 2pcs.*2 + 15 mm | 1,251 mm | 24 V / 234 W | 5,627 g | ||||
| LN-EBA-1300△ | 1,300 mm | 625 mmx 2pcs.*2 + 15 mm | 1,351 mm | 24 V / 254 W | 6,070 g | ||||
| LN-EBA-1400△ | 1,400 mm | 675 mmx 2pcs.*2 + 15 mm | 1,451 mm | 24 V / 273 W | 6,514 g | ||||
| LN-EBA-1500△ | 1,500 mm | 725 mmx 2pcs.*2 + 15 mm | 1,551 mm | 24 V / 292 W | 6,958 g | ||||
| LN-EBA-1600△ | 1,600 mm | 775 mmx 2pcs.*2 + 15 mm | 1,651 mm | 24 V / 312 W | FCB-AI-☐-C5*3 | PSB4-60024-2-PEI | 7,402 g |
- *1 ”△” mark is the model name indicates the LED color with one of the following letters : SW(White), RD(Red), or BL (Blue).
- *2 The light unit has two camera windows. Please refer to the dimension diagrams shown below.
- *3 ☐ : Cable length. (☐ = 2, 3, 5, 10)
- * The Light Units of both series conform to the safety standard EN 62471.
- * Warranty for this product differs from CCS standard lighting. Contact your local sales office for details.

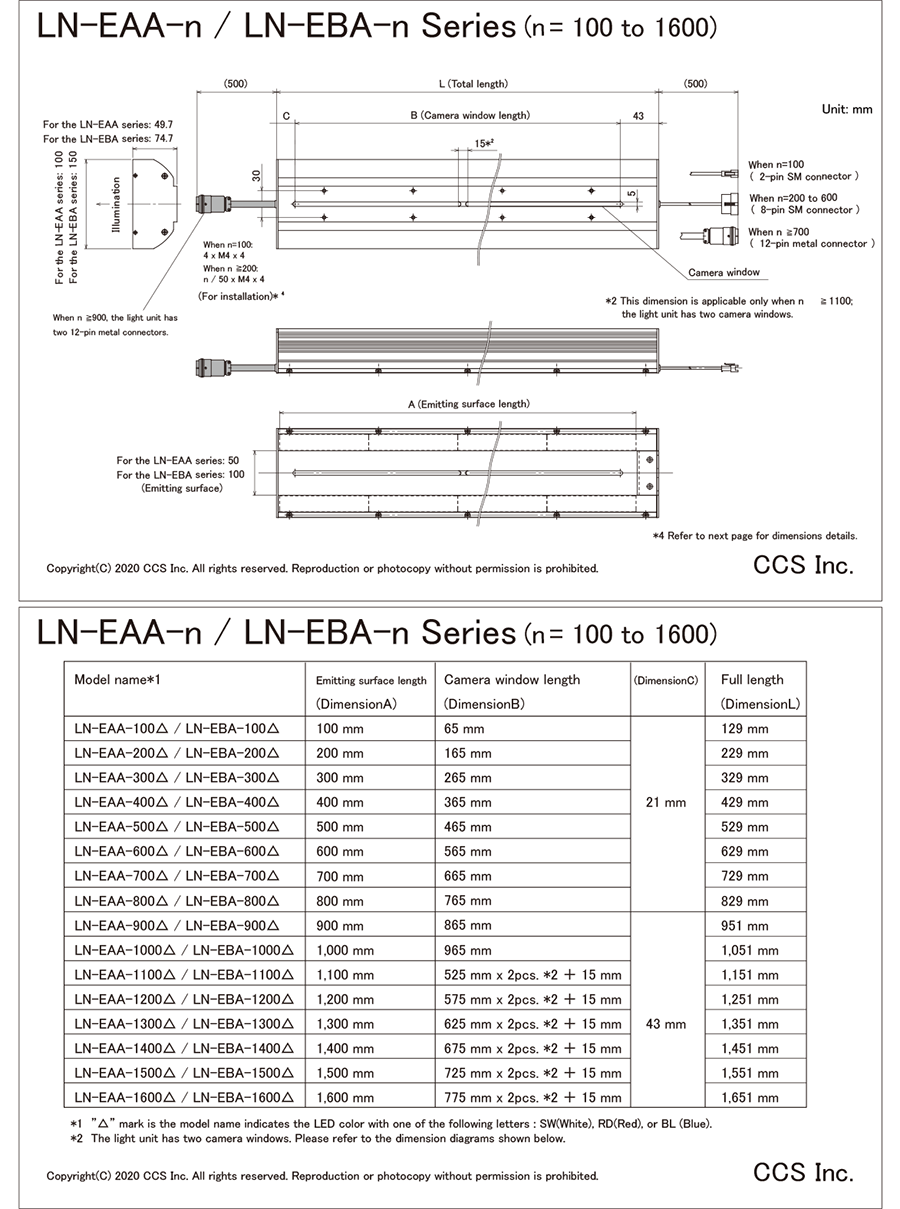

尺寸
LN-EAA-n / LN-EBA-n Series (n = 100 to 1,600)
(Unit: mm)
- *2 This dimension is applicable only when n ≧ 1100; the light unit has two camera windows.
- *4 Refer to download materals for dimensions details
- ★ Please see the line up for size details
Light Cable Connectors / Option Cables

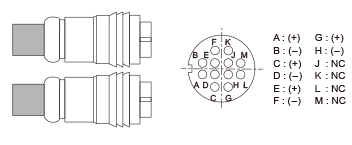

Light Cable Connectors

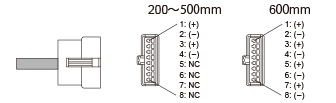

| Emitting surface length(mm) | Light cable connection - pin Assignment | Light cable connection | Extension cables | Control Units |
|---|---|---|---|---|

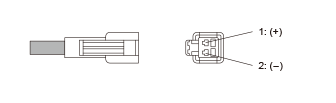

| 100 |  |
2-pin SM connector |
FCB-AI-☐-C1(□ =2, 3, 5, 10) |
PSB3-30024 PSB4-30024-PEI  PSB4-60024-2-PEI
|
| 200～600 |  |
8-pin SM connector |
FCB-AI-☐-C2(□ =2, 3, 5, 10) |
|

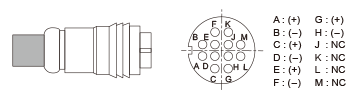

| 700～800 |
|
12-pin metal connector |
FCB-AI-☐-C3(□ =2, 3, 5, 10) |
|
| 900～1,500 |  |
12-pin metal connector |
FCB-AI-☐-C4(□ =2, 3, 5, 10) |
|
| 1,600 | 12-pin metal connector |
FCB-AI-☐-C5(□ =2, 3, 5, 10) |
PSB4-60024-2-PEI |
Option Cables

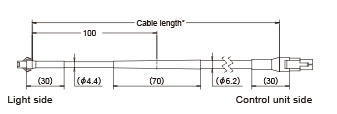

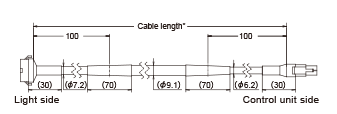

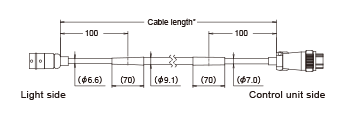

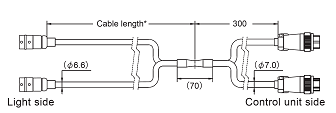

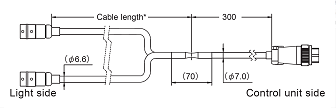

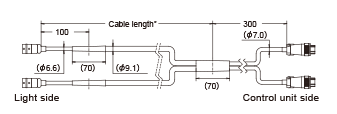

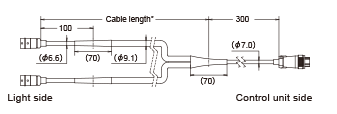

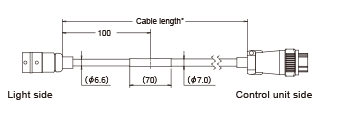

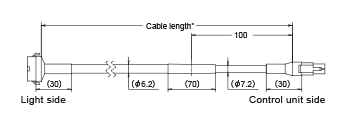

| Extension cables(* Cable length = ☐ meters) | ||
|---|---|---|
| FCB-AI-☐-C1 (□ = 2, 3, 5, 10)
|
FCB-AI-☐-C2 (□ = 2, 3)
|
FCB-AI-☐-C2 (□ = 5, 10)
|
| FCB-AI-☐-C3 (□ = 2, 3)
|
FCB-AI-☐-C3 (□ = 5, 10)
|
FCB-AI-☐-C4 (□ = 2, 3)
|
| FCB-AI-☐-C4 (□ = 5, 10)
|
FCB-AI-☐-C5 (□ = 2, 3)
|
FCB-AI-☐-C5 (□ = 5, 10)
|

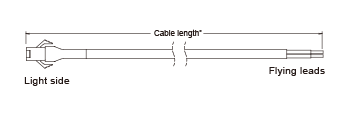

| Flying leads cables | ||
|---|---|---|

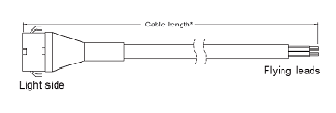

| FCB-A-☐-SM2-FL 2-pin SM connector (□ = 2, 3, 5, 10)
|
FCB-A-☐-SM8-FL 8-pin SM connector (□ = 2, 3, 5, 10)
|

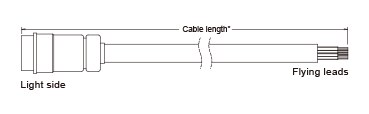

FCB-A-☐-ME12-FL 12-pin metal connector (□ = 2, 3, 5, 10)
|
