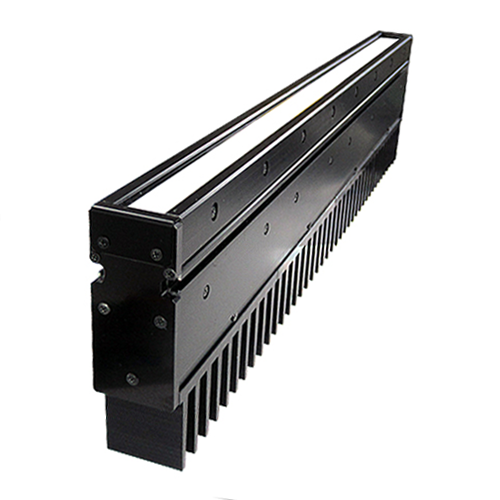

LN-HA Series (CCS AItec)
High-Illuminance Slim Line Lights
- Compact but High-Performance
- Industry-leading high illuminance with slim and fan-less case design
- Light emitting surface length up to 3 m
- Fan-less cooling system suitable for use in a clean room environment, such as for medical equipment production
Note
- "n" in the model name indicates the light emitting surface length (in 100 mm units)
- Available only in specific regions. Please contact your CCS sales representative for more information
Features / Imaging Example
High-Illuminance Slim Line
LightsLN-HA Series
Features
- Compact but High-Performance.
- Industry-leading high illuminance with slim and fan-less case design.
- Light emitting surface length up to 3 m."n" in the model name indicates the light emitting surface length (in 100 mm units).
- Fan-less cooling system suitable for use in a clean room environment, such as for medical equipment production.
Compact but High-Performance
Surface Inspection of Semiconductors

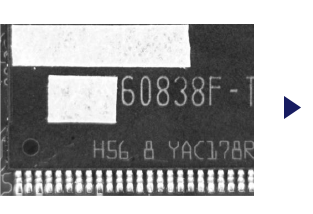

Conventional light with a natural air-cooling system
It is difficult to highlight the pinhole due to lack of light quantity.
It is difficult to highlight the pinhole due to lack of light quantity.

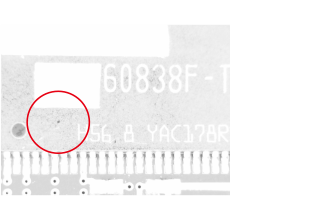

LN-HA-series Light Unit
High-power light output from a low angle makes it possible to highlight the pinhole.
High-power light output from a low angle makes it possible to highlight the pinhole.

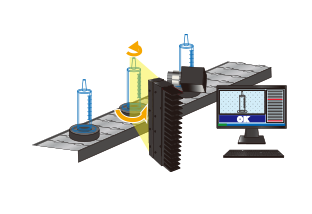

Other Applications
Inspection in a clean room; inspection of medical equipment, hygienic sheets, food packaging, food containers, and sanitary goods; light source for line sensors, visual inspection, or image processing; etc.
特性 ・数据

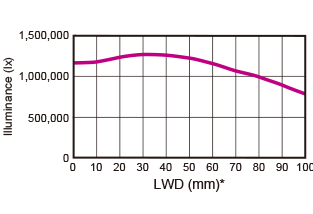

Illuminance Characteristics
*Distans from the Light unit to the workpiece.
The data included is for reference only. Actual values may vary.

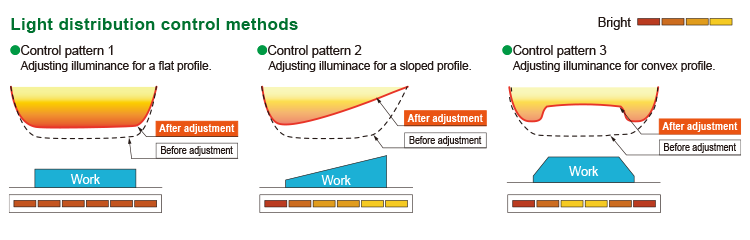

You can adjust the light intensity separately for each LED block(100 mm)
Dimensions and specifications

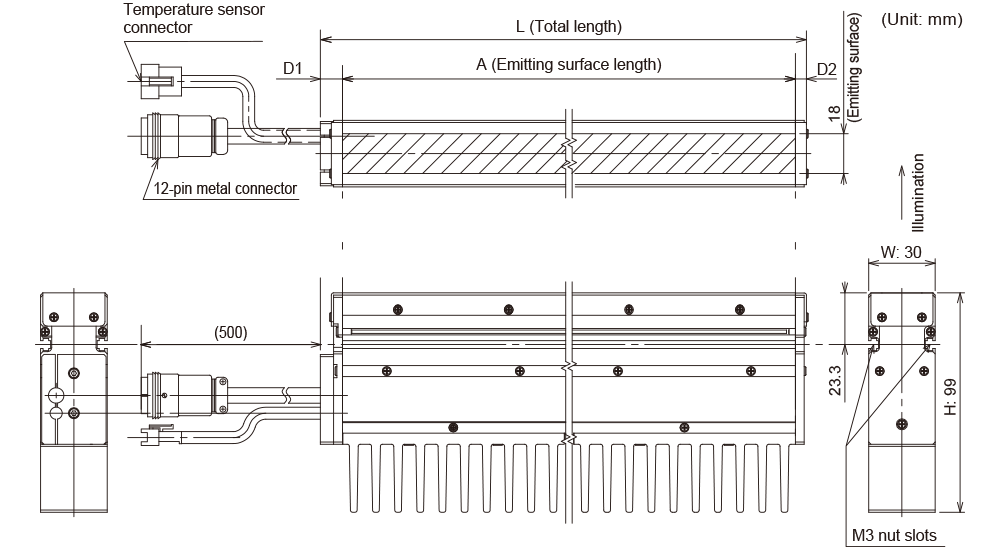

Dimensions
Please check the download document for details of the external dimensions.
Please check specifications for size details.
Specifications
| Model name | LxWxH (mm) | Emitting surface length (Dimension A)*1 (mm) |
D1 | D2 | Weight (kg) |
Number of LED blocks*2 | Power consumption |
Required light cable connection | Applicable Control Units |
|---|---|---|---|---|---|---|---|---|---|
| LN-HA-100SW | 115x30x99 | 100 | 10 | 5 | 0.45 | 1 | 20 | 12-pin metal connector、 5-pin temperature sensor connector |
PSCC-J1A-30048-0402 |
| LN-HA-200SW | 215x30x99 | 200 | 10 | 5 | 0.95 | 2 | 39 | ||
| LN-HA-300SW | 315x30x99 | 300 | 10 | 5 | 1.35 | 3 | 58 | ||
| LN-HA-400SW | 415x30x99 | 400 | 10 | 5 | 1.75 | 4 | 77 | ||
| LN-HA-500SW | 515x30x99 | 500 | 10 | 5 | 2.15 | 5 | 96 | ||
| LN-HA-600SW | 615x30x99 | 600 | 10 | 5 | 2.55 | 6 | 116 | ||
| LN-HA-700SW | 727x30x99 | 700 | 16 | 11 | 3 | 7 | 135 | 12-pin metal connector x 2pcs.、 5-pin temperature sensor connector |
|
| LN-HA-800SW | 827x30x99 | 800 | 16 | 11 | 3.4 | 8 | 154 | ||
| LN-HA-900SW | 927x30x99 | 900 | 16 | 11 | 3.8 | 9 | 173 | ||
| LN-HA-1000SW | 1,027x30x99 | 1,000 | 16 | 11 | 4.2 | 10 | 192 |
| Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) |
D1 | D2 | Weight (kg) |
Number of LED blocks*3 | Power consumption |
Required light cable connection | Applicable Control Units |
|---|---|---|---|---|---|---|---|---|---|
| LN-HA-1100SW | 1,127x30x99 | 1,100 | 16 | 11 | 4.6 | 11 | 212 | 12-pin metal connector? x 2pcs. 5-pin temperature sensor connector |
PSCC-J1A-30048-0402 |
| LN-HA-1200SW | 1,227x30x99 | 1,200 | 16 | 11 | 5.0 | 12 | 231 | ||
| LN-HA-1300SW | 1,331x30x99 | 1,300 | 20 | 11 | 5.4 | 13 | 250 | 37-pin metal connector | PSCC-J1A-60048-0402 |
| LN-HA-1400SW | 1,431x30x99 | 1,400 | 20 | 11 | 5.8 | 14 | 269 | ||
| LN-HA-1500SW | 1,531x30x99 | 1,500 | 20 | 11 | 6.2 | 15 | 288 | ||
| LN-HA-1600SW | 1,631x30x99 | 1,600 | 20 | 11 | 6.6 | 16 | 308 | 37-pin metal connector x 2pcs. | |
| LN-HA-1700SW | 1,731x30x99 | 1,700 | 20 | 11 | 7.0 | 17 | 327 | ||
| LN-HA-1800SW | 1,831x30x99 | 1,800 | 20 | 11 | 7.4 | 18 | 346 | ||
| LN-HA-1900SW | 1,931x30x99 | 1,900 | 20 | 11 | 7.8 | 19 | 365 | ||
| LN-HA-2000SW | 2,031x30x99 | 2,000 | 20 | 11 | 8.2 | 20 | 384 |
| Model name*1 | LxWxH (mm) | Emitting surface length (Dimension A)*2 (mm) |
D1 | D2 | Weight (kg) |
Number of LED blocks*3 | Power consumption |
Required light cable connection | Applicable Control Units |
|---|---|---|---|---|---|---|---|---|---|
| LN-HA-2100SW | 2,131x30x99 | 2,100 | 20 | 11 | 8.6 | 21 | 404 | 37-pin metal connector x 2pcs. | PSCC-J1A-60048-0402 |
| LN-HA-2200SW | 2,231x30x99 | 2,200 | 20 | 11 | 9.0 | 22 | 423 | ||
| LN-HA-2300SW | 2,331x30x99 | 2,300 | 20 | 11 | 9.4 | 23 | 442 | ||
| LN-HA-2400SW | 2,431x30x99 | 2,400 | 20 | 11 | 9.8 | 24 | 461 | ||
| LN-HA-2500SW | 2,531x30x99 | 2,500 | 20 | 11 | 10.2 | 25 | 480 | ||
| LN-HA-2600SW | 2,631x30x99 | 2,600 | 20 | 11 | 10.6 | 26 | 500 | 37-pin metal connector x 2pcs. | PSCC-J1A-10C48-0402 |
| LN-HA-2700SW | 2,731x30x99 | 2,700 | 20 | 11 | 11.0 | 27 | 519 | ||
| LN-HA-2800SW | 2,831x30x99 | 2,800 | 20 | 11 | 11.4 | 28 | 538 | ||
| LN-HA-2900SW | 2,931x30x99 | 2,900 | 20 | 11 | 11.8 | 29 | 557 | ||
| LN-HA-3000SW | 3,031x30x99 | 3,000 | 20 | 11 | 12.2 | 30 | 576 |
- *1 The available emitting surface lengths are in units of 100 mm.
- *2 An LED block is a batch of LEDs implemented on the same circuit. This is also the minimum scope of settings for light intensity and alarm on the dedicated power supply, PSCC-J1A series.To repair the Light Unit , customers can selectively replace the Implementation Board including the LED blocks. If this replacement is required, please contact your local sales representative.
- These Light Units conform to the safety standard EN 62471.
- Input voltage : DC48 V
Connection image
| Model name | Light cable connection | Extension cables | Control Units |
|---|---|---|---|
| LN-HA-100SW LN-HA-200SW LN-HA-300SW LN-HA-400SW LN-HA-500SW LN-HA-600SW |
5-pin temperature sensor connector 12-pin metal connector |
|
PSCC-J1A-30048-0402 |
| LN-HA-700SW LN-HA-800SW LN-HA-900SW LN-HA-1000SW |
5-pin temperature sensor connector 12-pin metal connector x 2 |
|
|
| LN-HA-1100SW LN-HA-1200SW |
12-pin metal connector? x 2 5-pin temperature sensor connector |
|
PSCC-J1A-30048-0402 |
| LN-HA-1300SW LN-HA-1400SW LN-HA-1500SW |
37-pin metal connector |
|
PSCC-J1A-60048-0402 |
| LN-HA-1600SW LN-HA-1700SW LN-HA-1800SW LN-HA-1900SW LN-HA-2000SW LN-HA-2100SW LN-HA-2200SW LN-HA-2300SW LN-HA-2400SW LN-HA-2500SW |
37-pin metal connector x 2 |
|
|
| LN-HA-2600SW LN-HA-2700SW LN-HA-2800SW LN-HA-2900SW LN-HA-3000SW |
37-pin metal connector x 2 |
|
PSCC-J1A-10C48-0402 |
More Information
Dedicated Power Supplies [for CCS AItec] PSCC-J1A Series
Extension cables [for CCS AItec] FCB-A Series
External Control Cables EXCB2-15M-3 External Control Cables EXCB2-9F-9F-3-CR
