PF-A4048-2

Multi-functional Control Unit for High Power Strobe LED Light Units.
Brightness can be adjusted through output voltage control.
Parameter registration for individual inspections is possible.

产品详细信息

外观尺寸 W 99.2 mm X D 219 mm X H 116 mm
适合光源(输出定额) High Power Strobe Light Units from CCS
通道数 2 channels
发光方式 Strobe lighting
驱动方式 Constant-voltage system
调光方式 Variable-voltage control, Strobe time control
输入电压 100 to 240 VAC (+10% -15%)
频率 50/60 Hz
消耗功率 65 VA typ.
输出电压 High voltage range: 33 to 48 VDC
Low voltage range: 12 to 48 VDC
输出电流 Total for 2 channels: 43.2 A (21.6A/connector)
涌入电流(typ) 15 A (at 100 VAC), 30 A (at 240 VAC) from a cold start
对地泄漏电流 3.5 mA max. (264 VAC, 60 Hz, with no load)
绝缘耐压・绝缘电阻(输入-FG) 1500 VAC for one minute, Cutoff current: 10 mA
500 VDC, 20 MΩ min.
适合规格 CE, UKCA、RoHS
使用温湿度 Temperature: 0 to 40℃, Humidity: 20 to 85%RH (No condensation)
保存温湿度 Temperature: -20 to 60℃, Humidity: 20 to 85%RH (No condensation)
冷却方式 强制冷却
重量 1,900 g max.
材质 Surface material (Steel sheet, Cover thickness: 1.6 mm, Chassis thickness: 1.0 mm, Black (half matte))
附属品 Instruction Guide, 2-m-long 3-prong AC power cord with ground terminal
Program 【Sample Program】
Sample programs are available. See the 软件工具 tab.

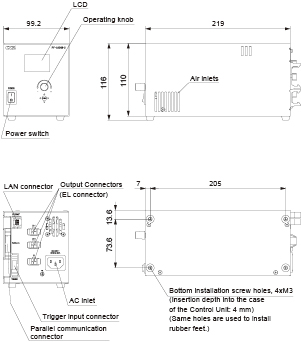

外形尺寸图(mm)

* Click to enlarge image.

软件工具

  • シーシーエス電源用サンプルプログラム Sample Program for CCS Controllers

  • 電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)

  • 電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

线缆

  • EXCB2-M10-3

  • EXCB2-M20-3

  • EXCB2-M10M20-3

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
