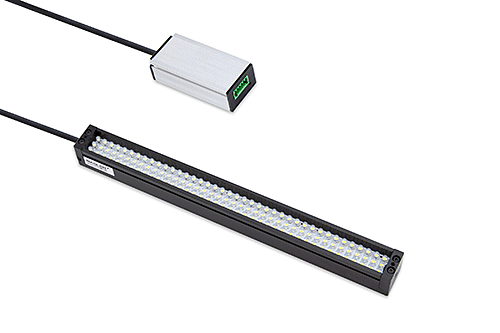

BCL-200X15W / BCL-200X15R / BCL-200X15B

BCL-200X15x (x=W, R, B) plug-and-play bar light connects to Basler ace U and ace L camera models. Control lighting mode, lighting time, and dimming of lighting through the camera software.
The LED emission colors are red, blue and white, and the emission surface size is 200 x 15 mm.
Diffuser DF-BCL-200X15 and polarizing plate PL-BCL-200X15 are available as options.
Warranty for this product are not the same as CCS standard lighting. Contact our local sales o ice for details.<br />

产品详细信息

LED发光颜色 Red , Blue , White
峰值发光波长 Red 630 nm, Blue 470 nm, White 5500 K
外观尺寸 W 213 mm x D 20 mm x H 20 mm
输入电压 24 VDC ( ± 10% )
消耗功率 Red 6.1 W, Blue 6.1 W, White 11 W
适合规格 RoHS, CE, UKCA
使用温湿度 Temperature: 0 to 40℃ (Light intensity may vary due to the change in ambient temperature) Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) (Should not be frozen, condensed or exposed to the rapid change in temperature)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 200 g
附属品 使用说明书

Controller Details

Connectors Controller part: Applicable Terminal Block Connector: Wurth Elektronik WR-TBL series 691381000006) Wurth Elektronik WR-TBL series 691382010006
Drive method Constant-voltage system
Intensity control method PWM control
PWM frequency 100 kHz
Cable length Light cable: 500 mm Camera cable: 3 m max.
CE marking EMC Standard: Conforms to EN61000-6:2019、EN61000-6-:2007+A1:2011
Case material Aluminum alloy, Resin

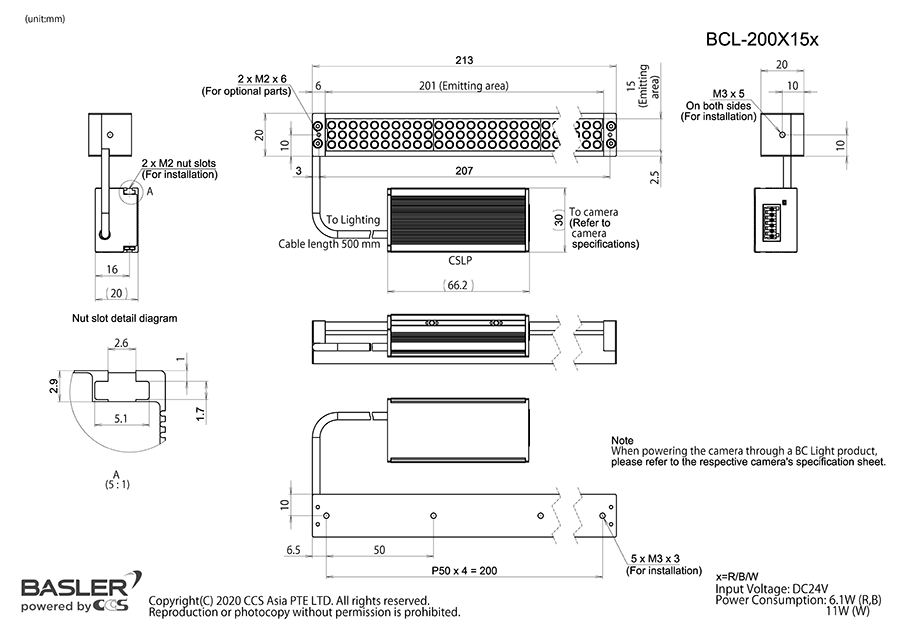

外形尺寸图(mm)

* Click to enlarge image.

选件

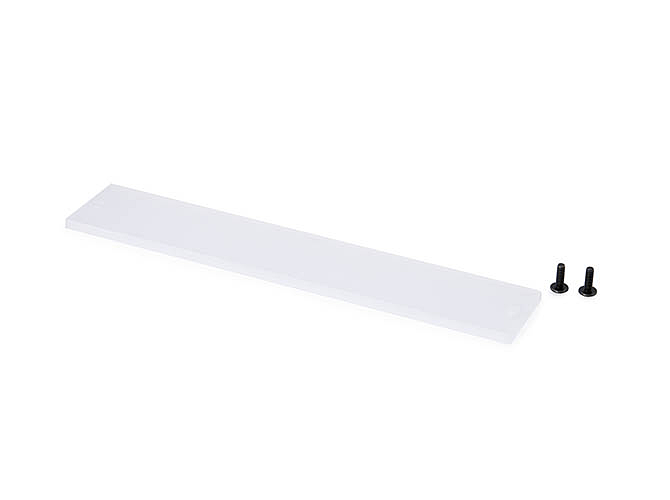

  • DF-BCL-200X15

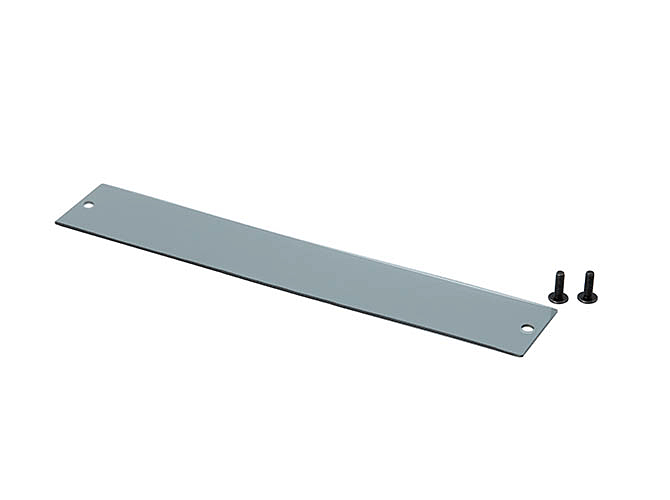

  • PL-BCL-200X15

  • BC-CBL-3

  • BK-BCL

资料下载

PDF图纸 DXF图纸 使用说明书 STEP图纸
