PL-LDR-120-40

For the LDR2-120-series Ring Lights.
Ring type polarizing plate.
Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.

产品详细信息

外观尺寸 Outer diameter 120 mm, Inner diameter 40 mm, Height 0.8 mm
透光率 30%
耐热温度 60℃
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
重量 10 g max.
附属品 使用说明书
注意事项 The shape or color of the Polarizing Plate may change due to heat in the application environment.
If this occurs, you may not be able to get the intended results.
Please perform periodic inspections.
备注 Applicable products: LDR2-120
An adapter is needed for attachment to the Light Unit.

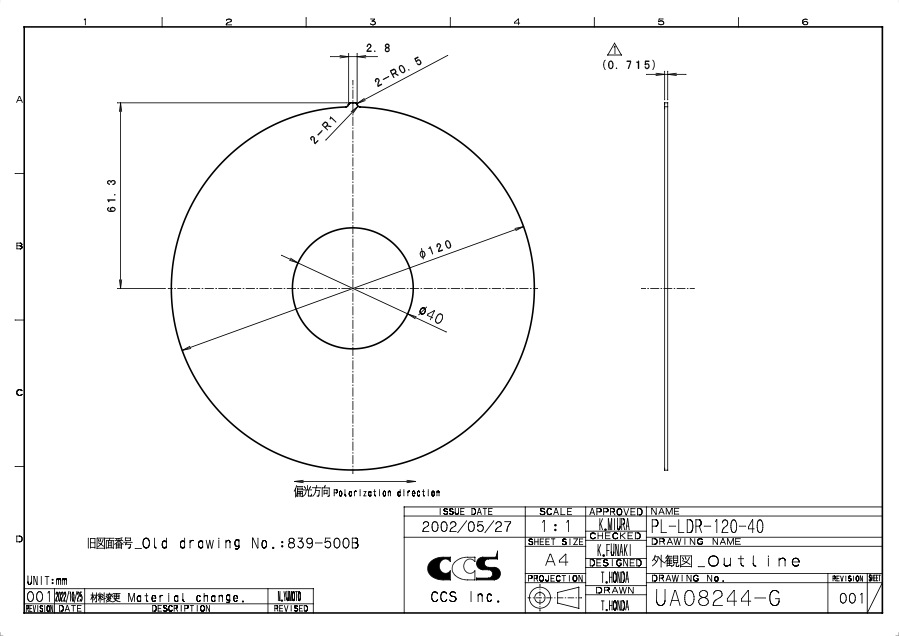

外形尺寸图(mm)

※クリックすると画像が拡大します。

选件

  • AD-LDR-120

  • PL-25

  • PL-25-NL

  • PL-27

  • PL-27-NL

  • PL-30

  • PL-30-NL

  • PL-40

  • PL-40-NL

  • PL-46

  • PL2-35.5-NL

  • PL2-37.5-NL

  • PL2-43-NL

  • PL2-46-NL

  • PL2-48-NL

  • PL2-49-NL

  • PL2-52-NL

  • PL2-55-NL

  • PL2-58-NL

  • PL2-62-NL

  • PL2-67-NL

  • PL2-72-NL

  • PL2-77-NL

  • PL2-82-NL

  • PL2-86-NL

  • PL2-95-NL

  • PL2-105-NL
