PL-LDL2-19X4-HO

For the LDL2-19X4-series Bar Lights.
This is a bar-type Polarizing Plate.
Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.

-HO: Light is polarized parallel to the longer edge of the plate.
-VE: Light is polarized parallel to the shorter edge of the plate.

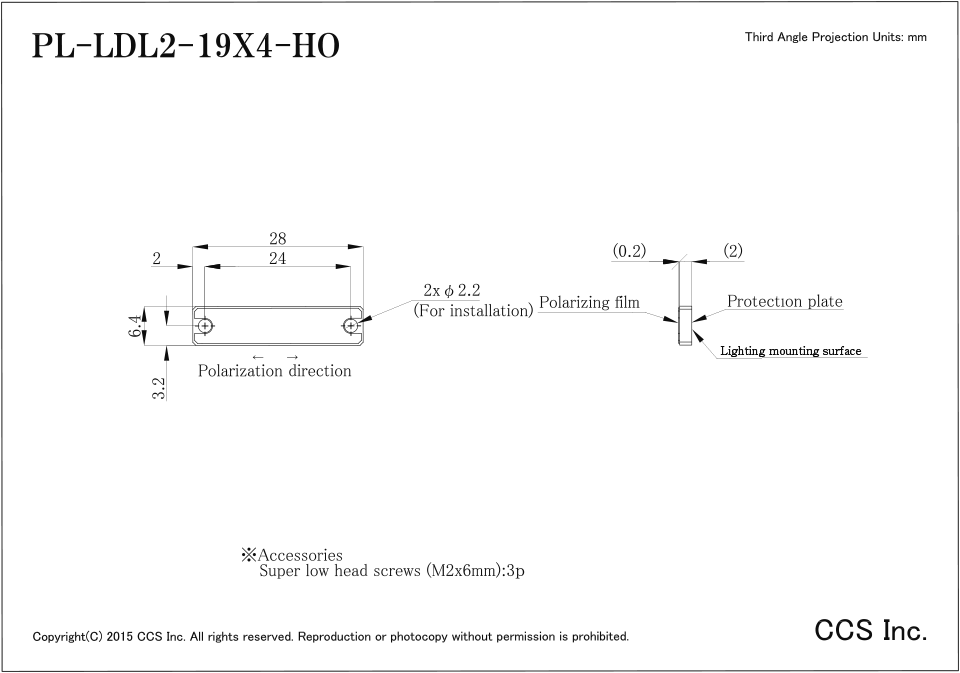

外形尺寸图(mm)
