PD3-3024-3-EIK
- 特殊定制品
This digital control unit with keep-alive function can be used for LED light units with an input voltage of 24 V within a total power consumption of 28 W.
This Control Unit operates on a 100 to 240 VAC input and measures 84 x 82.6 x 120 mm (width x depth x height). External control through Ethernet communications.
This is a made-to-order product. For queries and details, contact your CCS sales representative.
详细内容请参阅“PD3-3024-3-EIC2页面”。
产品详细信息
外观尺寸 | W 84 mm x D 82.6 mm x H 120 mm |
---|---|
适合光源(输出定额) | Light Units with 24 VDC input Total for 3 channels: 28 W |
通道数 | 3 channels |
发光方式 | Constant/Strobe lighting |
驱动方式 | Constant lighting |
调光方式 | PWM control, Lighting time control |
调光 | Manual: 256-step using the front setting switch External: Command input via TCP/IP or UDP/IP communication |
PWN频率 | 125 kHz |
输入电压 | 100 to 240 VAC (+10% -15%) |
频率 | 50/60 Hz |
消耗功率 | 78 VA |
输出电压 | 24 VDC |
输出电流 | Total for 3 channels: 1.1 A |
涌入电流(typ) | 15 A (at 100 VAC), 30 A (at 200 VAC) from a cold start |
错误检测显示 | OCP is displayed on the digital display |
错误检测输出 | Command sent when overcurrent output is detected. |
过电流保护 | Yes |
输出端口 | SMP-03V-BC x 3 |
外部控制端口 | Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: RJ-45 connector |
适合规格 | CE, UKCA、RoHS |
使用温湿度 | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
保存温湿度 | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
冷却方式 | Natural air-cooling |
重量 | 600 g |
材质 | Aluminium, ABS |
附属品 | 2m long 3-prong AC power cord with ground terminal, Instruction Guide |
备注 | Keep-alive functions monitor the validity of the connection of the machine to the network, wherein to prevent the connection from dropping, a signal is periodically sent between machines. |
Program | 【Sample Program】 Sample programs are available. See the 选件 tab. |

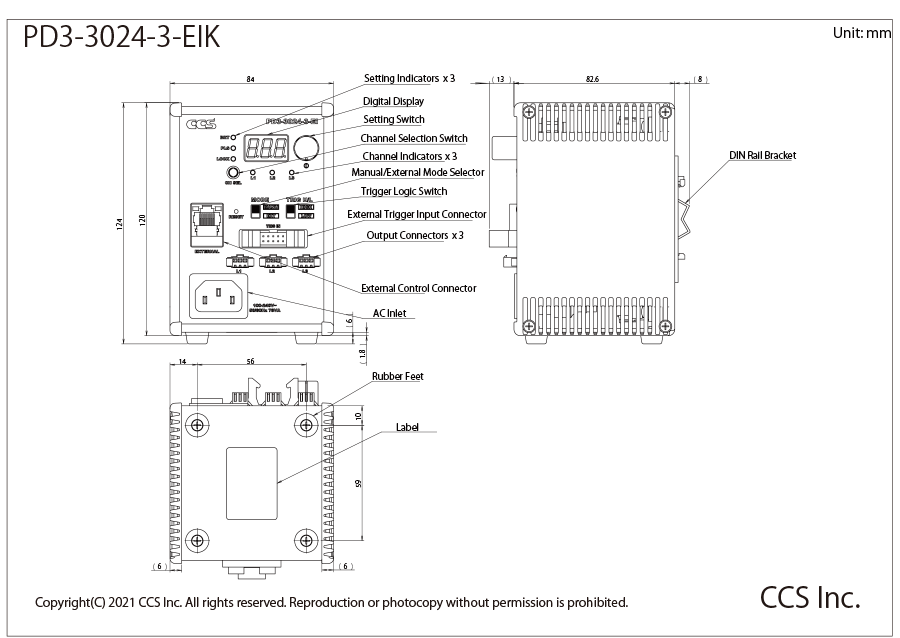

外形尺寸图(mm)
