PL-LDL2-119X16

For the LDL2-119X16(-WD)-series Bar Lights.
This is a bar-type Polarizing Plate.
Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.

The end of the model name is -VE: Light is polarized parallel to the shorter edge of the plate.
The end of the model name is NOT -VE: Light is polarized parallel to the longer edge of the plate.

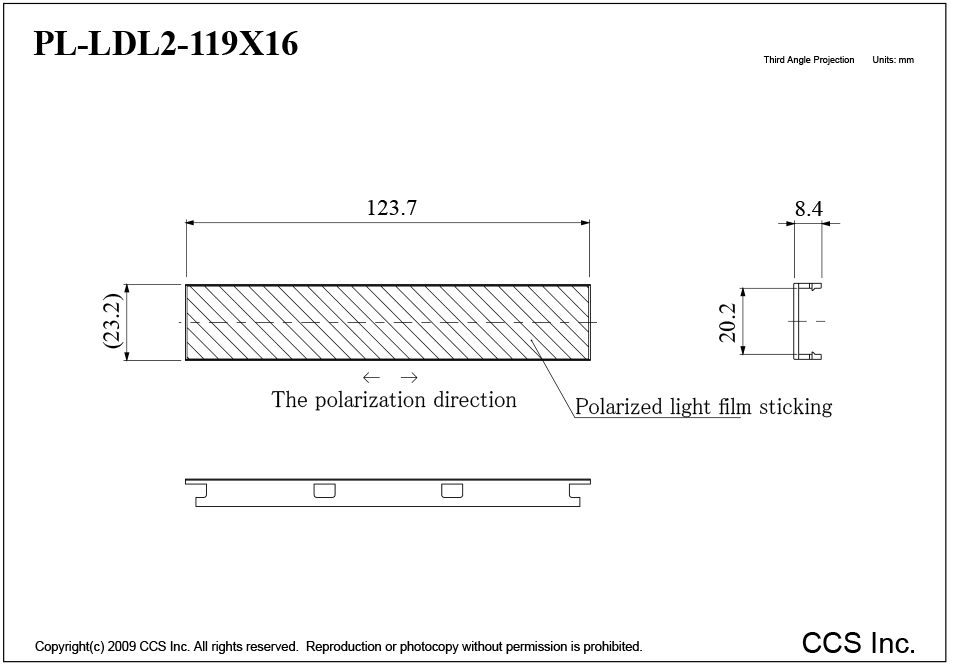

外形尺寸图(mm)
