HLV2-24UV3-365

  • 标准品

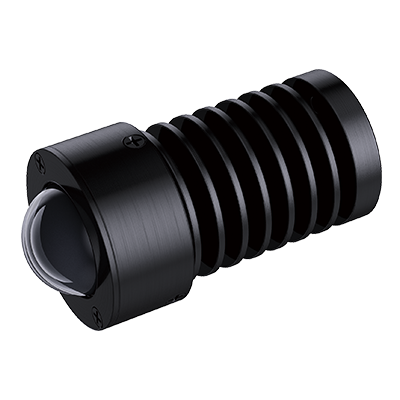

Spot type ultraviolet LED light with a peak wavelength of 365 nm.
Outer diameter 24 mm, total length 54 mm, tip diameter 28 mm.

产品详细信息

LED发光颜色 Ultraviolet
峰值发光波长 365 nm typ.
外观尺寸 Outer diameter 24 mm, Tip diameter 28 mm, Total length 54 mm
消耗功率 2.8 W max.
极性, 信号 1: Signal, 2: (+), 3: (-)
线缆长度 300 mm
外壳材质 Aluminum alloy
输入端口 SMR-03V-B
输入电流 0.7 A max
适合规格 CE, UKCA, RoHS, REACH, IEC 62471（High risk）
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 50 g max.
附属品 User Manual, Radiation aperture seal, UV DANGER seal
注意事项 * UV radiation is very harmful to the naked eye.
* To avoid direct exposure to ultraviolet radiation, all workers around this product must use protective equipment.
* Make known to all personnel concerned the risk of ultraviolet radiation.
* Take sufficient safety precautions when handling the machinery and devices incorporating this product.
* Please inquire if you would like to use in combination with a Strobe Control Unit (overdrive type).

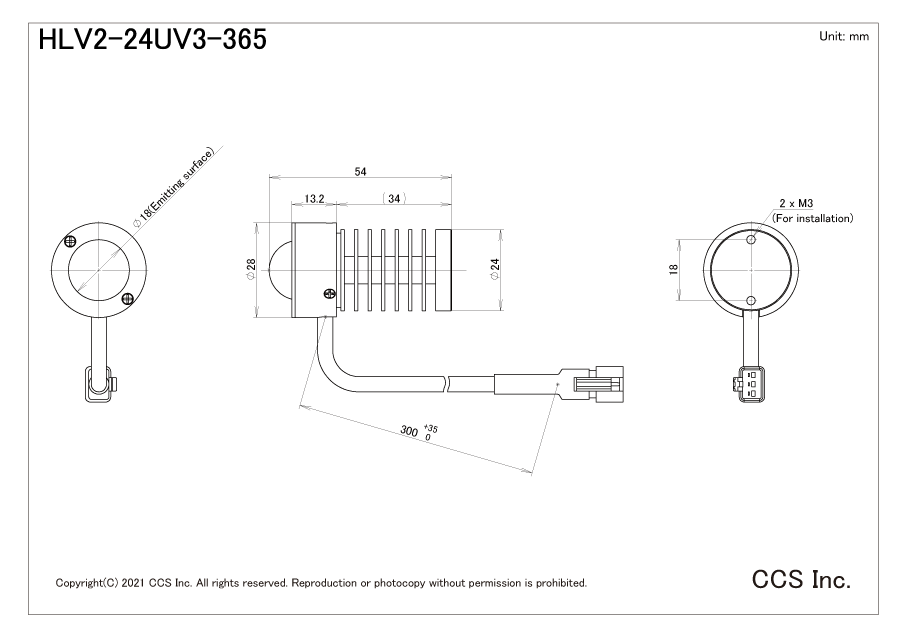

外形尺寸图(mm)

* Click to enlarge image.

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 3 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

电源

Control Unit Guide(PDF)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

  • PJ-1505-3CA

  • PJ-1505-2CA

  • PJ-1505-2CD24

  • PJ-1505-3CD24

  • CC-PJ-0707
