HLV2-24VL3-385 / HLV2-24VL3-395 / HLV2-24VL3-405

  • 标准品

Spot type violet LED light.
Available wavelengths: 385nm (HLV2-24VL3-385), 395nm (HLV2-24VL3-395), and 405nm (HLV2-24VL3-405)
Outer diameter 24 mm, total length 54 mm, tip diameter 28 mm.

This product is made to order. Please contact your sales representative for details.

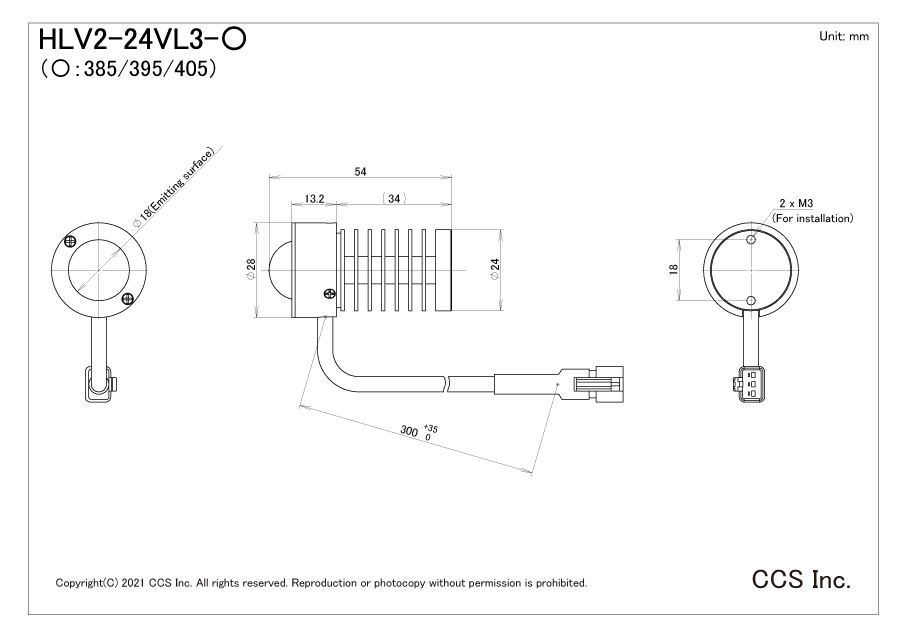

外形尺寸图(mm)

* Click to enlarge image.

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

电源

Control Unit Guide(PDF)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

  • PJ-1505-3CA

  • PJ-1505-2CA

  • PJ-1505-2CD24

  • PJ-1505-3CD24

  • CC-PJ-0707
