PL-LDL2-146X30

For the LDL2-146X30(-WD)-series Bar Lights.
This is a bar-type Polarizing Plate.
Use the polarizing plate together with a plarizing filter to eliminate the surface reflection of the workpiece.

The end of the model name is -VE: Light is polarized parallel to the shorter edge of the plate.
The end of the model name is NOT -VE: Light is polarized parallel to the longer edge of the plate.

产品详细信息

外观尺寸 W 150.7 mm x D 37.2 mm x H 8.4 mm
耐热温度 60℃
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
重量 17 g max.
附属品 使用说明书
注意事项 Heat may cause deformation or discoloring depending on the use environment.
If this occurs, you may not be able to get the intended results.
Please perform periodic inspections.
备注 Applicable products: LDL2-146X30(-WD)

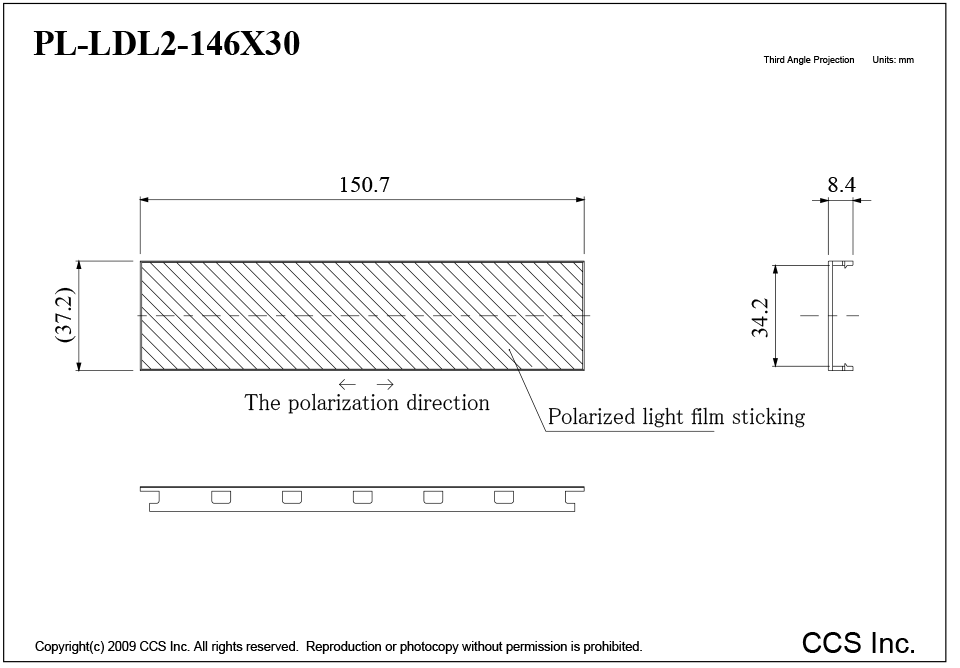

外形尺寸图(mm)
