PD4-12024-2-E

  • 标准品

The PD4-12024-2-E digital control unit can connect 24V input LED lighting with a total power consumption of up to 120W.
This control unit operates on an AC100-240V. External control protocol is Ethernet communication and PLCCOM communication.
Measures 190mm x 95mm x 106mm (width x depth x height).

AC power cable will be included in the standard model.
AC power cable will not be included in the model with "-NC" at the end.
The product with the model name with "-NC" at the end conforms to the KC standards.
For customers in Korea and Europe, please select model name with "-NC" at the end.

PD4-12024-2-E-NC

产品详细信息

适合光源(输出定额) 24V DC Light Units, total for all connectors: 120 W max.
(ELR-02V: 120 W max. per connector, SMP-03V-BC: 60 W max. per connector)
通道数 2 channels
发光方式 Continuous / Strobe lighting (no overdrive)
驱动方式 Constant-voltage system
调光方式 Continuous lighting: PWM control / Strobe lighting: PWM control and lighting time control
调光设定 Select from 1,024 levels and 256 levels
PWN频率 125 kHz
输入电流 100 to 240 VAC (+10% -10%)
消耗功率 168 VA
涌入电流(typ) 14 A (at 100 VAC), 34 A (at 240 VAC) from a cold start
外部控制方式 Ethernet communication, PLCCOM communication, USB communication
过电流保护 Yes
过电压保护 Category II
输出端口 ELR-02V x 2, SMP-03V-BC x 2
SM/EL connectors on the same channel have the same intensity setting
适合规格 CE, UKCA, RoHS compliant
触发输入电压 5 - 24 V
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 1.5 kg max.
材质,涂装,表面处理 Steel sheet, black (leather satin)
附属品
  • Hardware manual x 1
  • Power Terminal Block Cover x 1
  • M4 screws for the cover x 2
  • AC Power Cable (2m-long 3-prong) with ground terminal*1 x 1
  • Trigger Terminal Block*2 x 1
  • *1 Model name of AC power cable: ACC-JIS-125-7-M4-2.
    AC power cable will not be included as an accessory for model names with "-NC".
    Please choose the NC model for the product without AC power cable.
  • *2 Wires for trigger are not included. Please prepare them separately.
    Applicable power wires: AWG 26 to 16 (0.13 to 1.31 mm2), length: within 3 m,
    bare end: 8 mm (Ferrule can be used)
Program 【Sample Program】
Sample programs are available. See the 软件工具 tab.

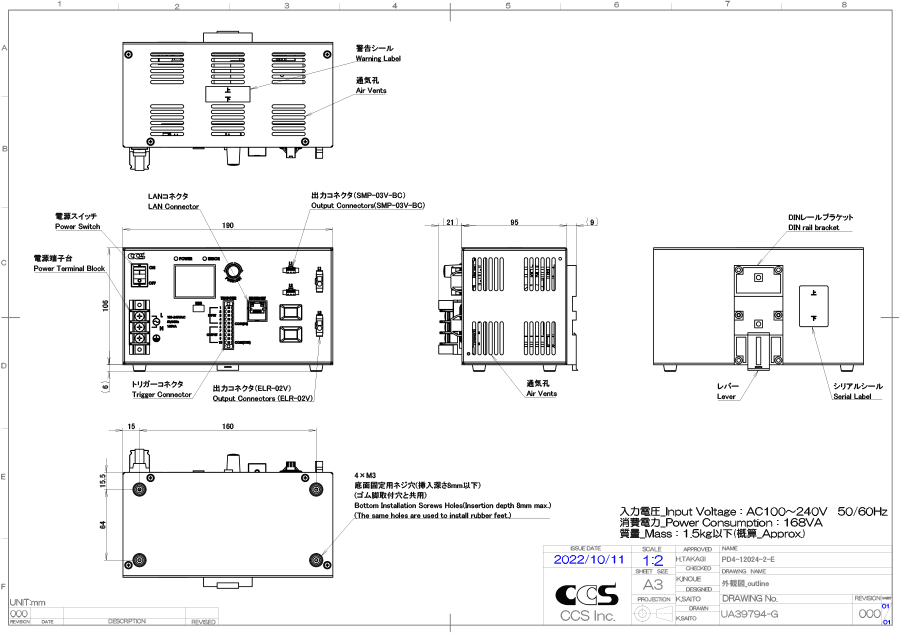

外形尺寸图(mm)

* Click to enlarge image.

软件工具

  • Version 110_110 (PD4)

  • 電源用イーサネット通信サンプルプログラム(VC#,VB) Ethernet Sample Program (VC#,VB)

  • 電源用イーサネット通信サンプルプログラム(Python) Ethernet Sample Program (Python)

线缆

  • ACC-JIS-125-7-M4-2
