EXCB2-FX32-9F-3
- 标准品
External control cable for CD-VA Series RS-232C.

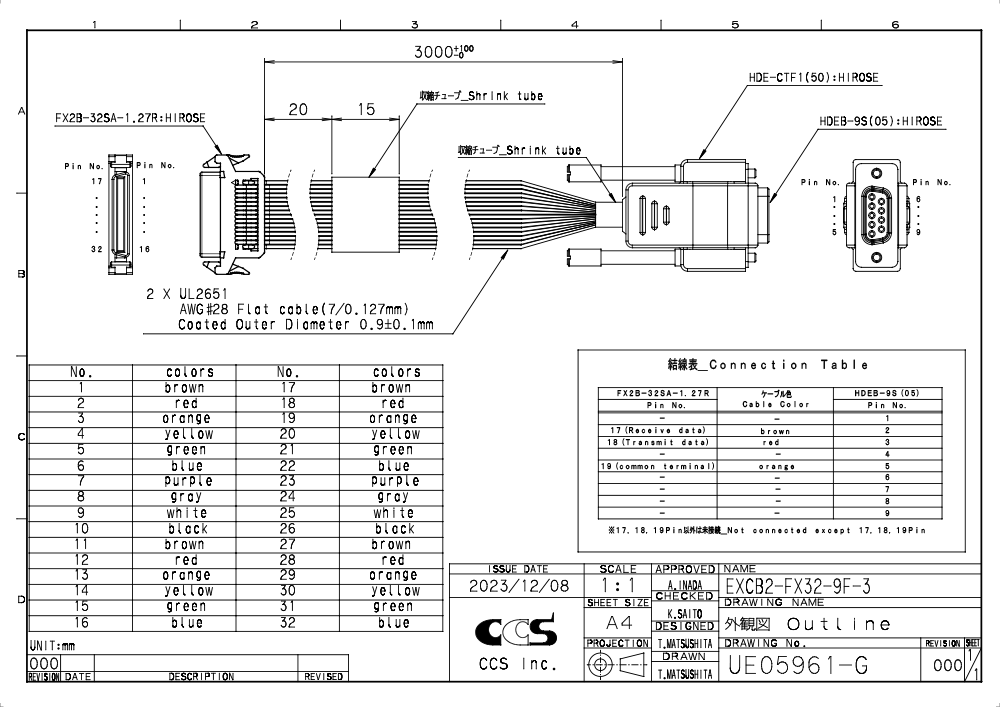

外形尺寸图(mm)
* Click to enlarge image.
Pin Assignment
| PIN No. | Signal name | Wire color |
|---|---|---|
| 1 | Dimming bit 0 | Brown |
| 2 | Dimming bit 0 | Red |
| 3 | Dimming bit 0 | Orange |
| 4 | Dimming bit 0 | Yellow |
| 5 | Dimming bit 0 | Green |
| 6 | Dimming bit 0 | Blue |
| 7 | Dimming bit 0 | Violet |
| 8 | Dimming bit 0 | Gray |
| 9 | Dimming bit 0 | White |
| 10 | Dimming bit 0 | Black |
| 11 | Lamp switching 0 | Brown |
| 12 | Lamp switching 1 | Red |
| 13 | Lamp switching 2 | Orange |
| 14 | Lamp switching 3 | Yellow |
| 15 | Dimming value write | Green |
| 16 | Input COM | Blue |
| 17 | RS-232C reception input | Brown |
| 18 | RS-232C sending output | Red |
| 19 | RS-232C common terminal | Orange |
| 20 | Lighting time write | Yellow |
| 21 | Write mask | Green |
| 22 | General-purpose output 1 | Blue |
| 23 | General-purpose output 2 | Violet |
| 24 | General-purpose output 3 | Gray |
| 25 | General-purpose output 4 | White |
| 26 | General-purpose output 5 | Black |
| 27 | General-purpose output 6 | Brown |
| 28 | Output COM | Red |
| 29 | Trigger input 1 | Orange |
| 30 | Trigger input 2 | Yellow |
| 31 | Trigger input 3 | Green |
| 32 | Trigger input 4 | Blue |
