LC-TH-27X27-VE

  • 标准品

For the TH/TH2-27X27-series Coaxial Lights.
Square type Light Control Film.
Improves parallerism of light and prevents wrapping around of light in the appearance inspection of workpieces when mounted on the Light Unit.
This enables sharp imaging of profiles.

HO: The direction of louvers is horizontal when attaching with the cable outlet facing downwards.
VE: The direction of louvers is vertical when attaching with the cable outlet facing downwards.
One side is glossy and the other side is matte.
When you would like to reduce the glare, please put the matte side on the surface.

产品详细信息

外观尺寸 W 39 mm x D 29 mm x H 0.5 mm
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
重量 5 g max.
附属品 Fixing screws x 5, User Manual
注意事项 The shape or color of the LC film may change due to heat in the application environment.
If this occurs, you may not be able to get the intended results.
Please perform periodic inspections.
One side is glossy and the other side is matte.
When you would like to reduce the glare, please put the matte side on the surface.
* PDF and DXF drawings have been changed due to changes in LC film components. (July 2020)
备注 Applicable products: TH/TH2-27X27 Series.

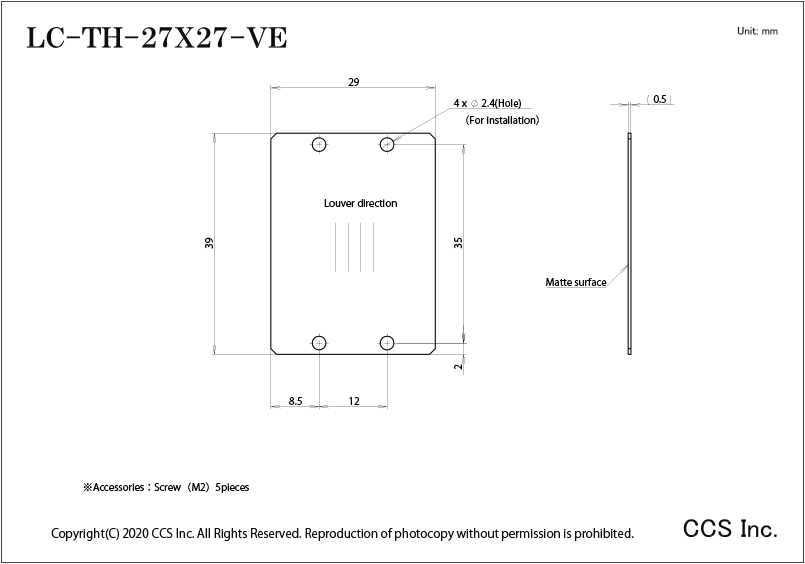

外形尺寸图(mm)
