PFB2 Series

Not available from June/29/2018".
The recommended alternative model is PFB3 Series.

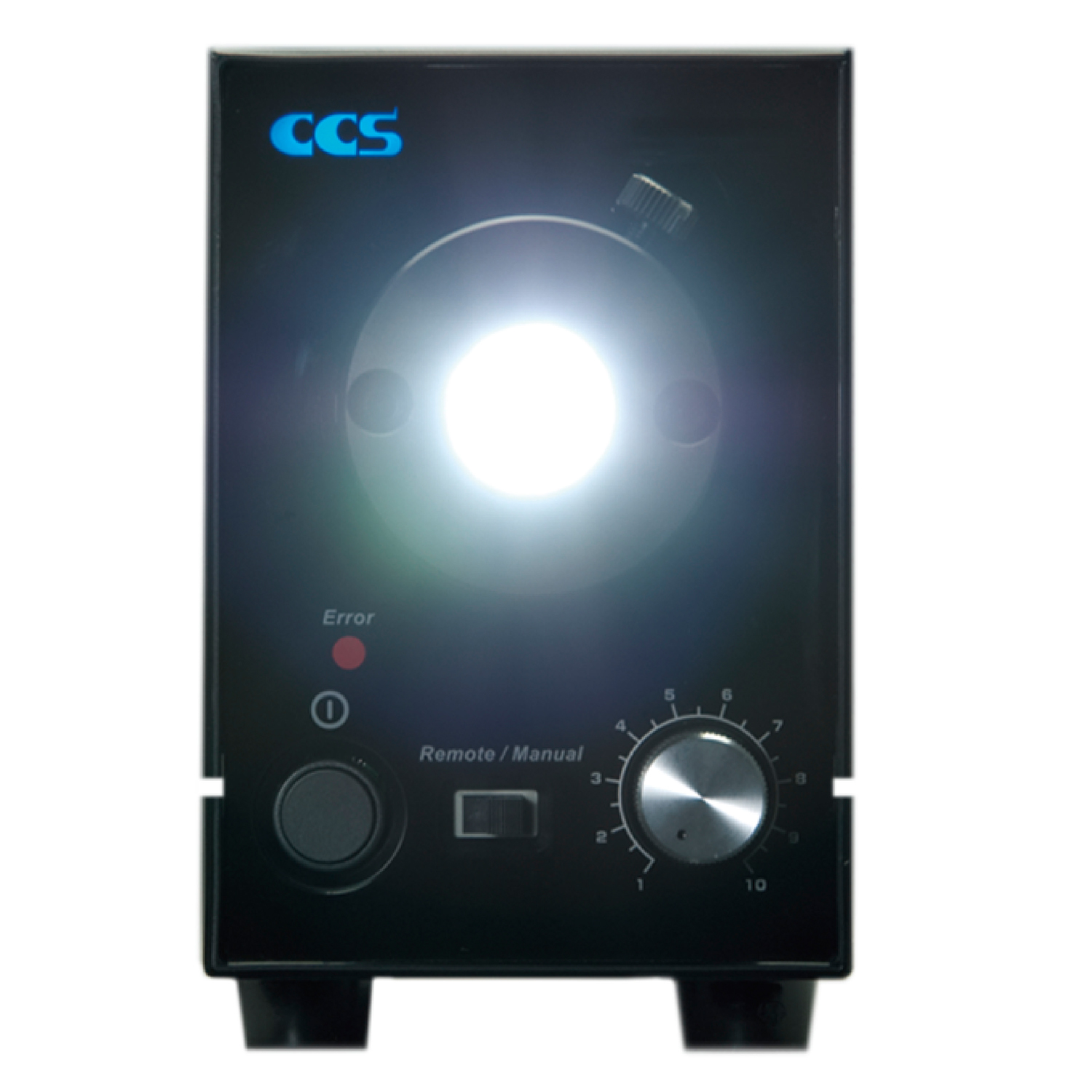

These LED Light Sources can be used to replace halogen light sources. These environment-friendly next-generation Light Sources feature a low power consumption, a long service life, and a significant reduction in maintenance work compared with 100-W halogen light sources.

特点

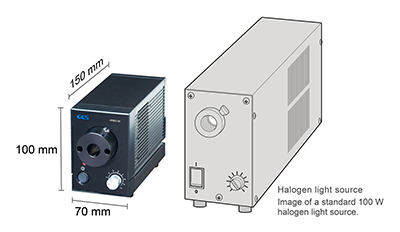

Compact size that can be installed anywhere

70 mm wide, 150 mm deep, and 100 mm tall, this compact design helps save space.

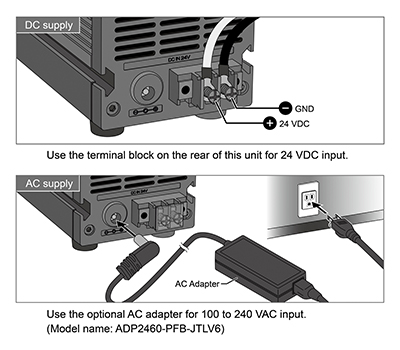

Select a power supply to match your actual environment

The terminal block on the unit rear supports 24 VDC input. With an optional AC adapter, it can also support 100 to 240 VAC input. You can make a selection to match your actual environment.

Supports major light guide manufacturers

Supports major light guide manufacturers
(5 Japanese companies, 6 international companies).

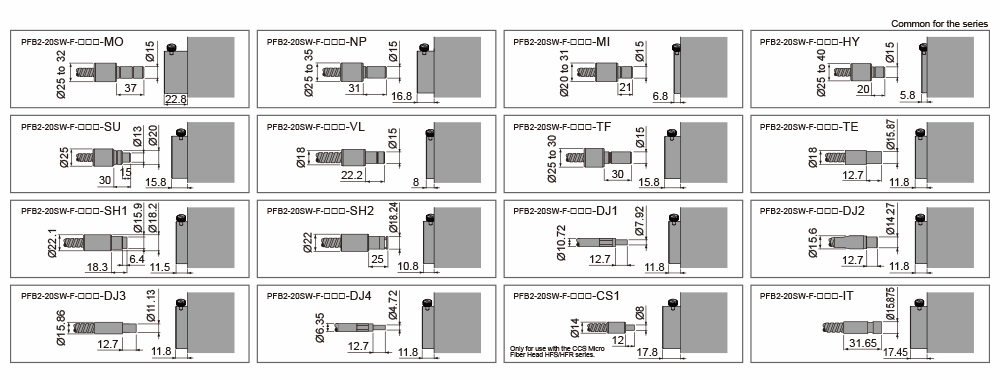

Light guide adapter dimensions chart (mm)

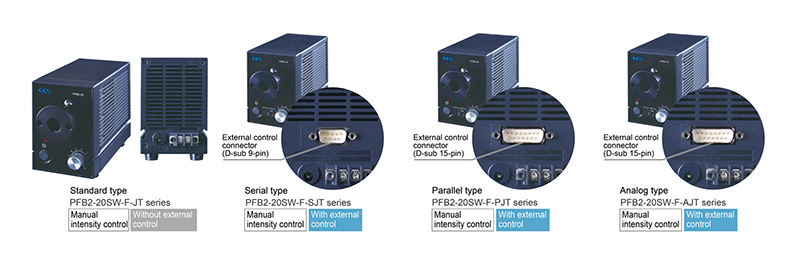

Selectable external control

The lineup includes a model where intensity can only be manually adjusted, and models that allow for external control. There are three types of external control: serial, parallel, and analog. ON/OFF control and intensity control are possible by each control type.
