HLV3-22RD-4C / HLV3-22SW-4C / HLV3-22BL-4C / HLV3-22GR-4C

  • 标准品

HLV3 Series Cylindrical Type High Output Models (HLV3-22RD-4C, HLV3-22SW-4C, HLV3-22BL-4C, HLV3-22GR-4C)
This Light Unit emits LED light and has an outer diameter of 22 mm, a tip diameter of 8 mm, a light-emitting surface diameter of 6 mm, and a total length of 61 mm.

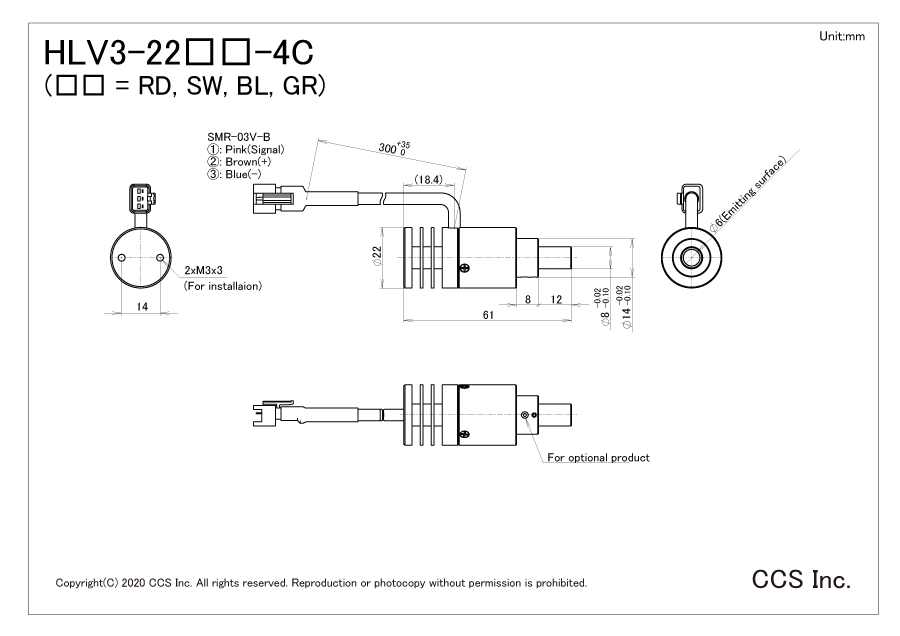

外形尺寸图(mm)

* Click to enlarge image.

选件

  • HL-24-21

  • HL-30

  • HL2-25-P

  • HL2-50-P

  • HL2-M50-C

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 2 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

  • FCB-HLV3-10

  • FRCB-HLV3-10

电源

Control Unit Guide(PDF)

  • PJ2-1505-2CA-PE

  • PJ2-3005-4CA-PE

资料下载

综合目录(摘录) PDF图纸 DXF图纸 宣传单页 使用说明书 关于保证和环境管制 3D-CAD
