CD-VA10024-2PE

  • 标准品

CD-VA10024-2PE digital control unit can connect 24 V input LED lighting with a power consumption of up to 100 W (2 channels total).
Supports 3 intensity control methods (PWM control, variable-voltage control, and strobe overdrive).
Up to 4 units can be connected with infrared communication.
External control via Ethernet, USB, RS-232C, and parallel is available.
Measures W 80 mm x D 99 mm x H 98 mm.

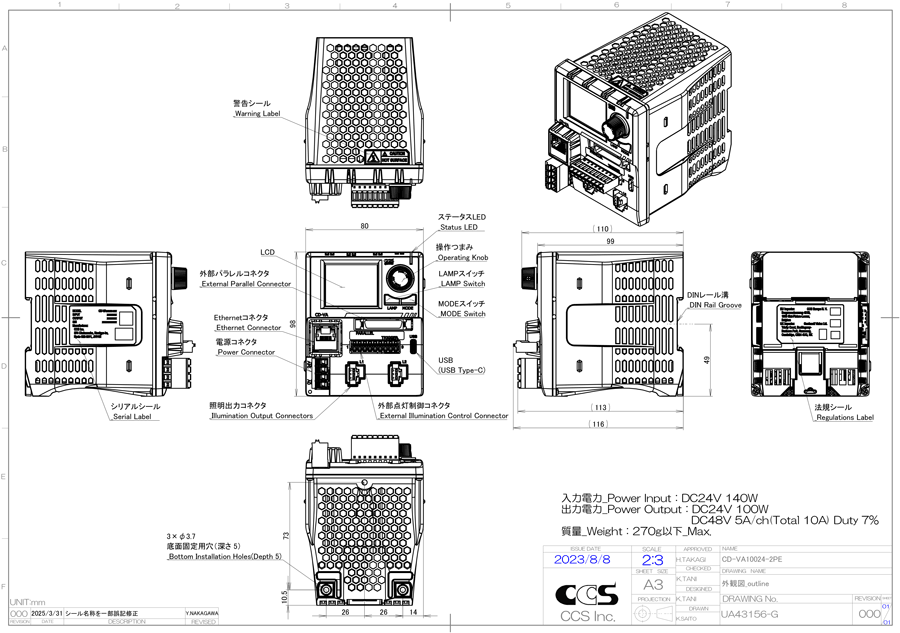

外形尺寸图(mm)

* Click to enlarge image.

选件（另售）

For details, including compliance with environmental regulations, please contact your local sales office.

  • Trigger cable (Model name: OP-ECBX9-3)
  • External control cable (Model name: OP-ECBX32-3)
  • Ferrite core (Model name: OP-NFT-13S)

Contact Us

DC24V电源容量

The 24 VDC control unit should be selected according to the total power consumption of the light used, based on the graph.

CD-VA10024-2P / CD-VA10024-2PE
CD-VA10024-2P / CD-VA10024-2PE
CD-VA20024-4P / CD-VA20024-4PE
CD-VA20024-4P / CD-VA20024-4PE
Note

When using with other devices, select a control unit depending on the device characteristics, leaving sufficient margin (approx. 2x) compared to the graph.

线缆

  • EXCB2-FX32-9F-3

  • EXCB2-FX32-3

  • EXCB2-FER08-22-3-9CL
