CD-VA20024-4PE
- 标准品
CD-VA20024-4PE digital control unit can connect 24 V input LED lighting with a power consumption of up to 200 W (4 channels total).
Supports 3 intensity control methods (PWM control, variable-voltage control, and strobe overdrive).
Up to 4 units can be connected with infrared communication.
External control via Ethernet, USB, RS-232C, and parallel is available.
Measures W 80 mm x D 99 mm x H 98 mm.

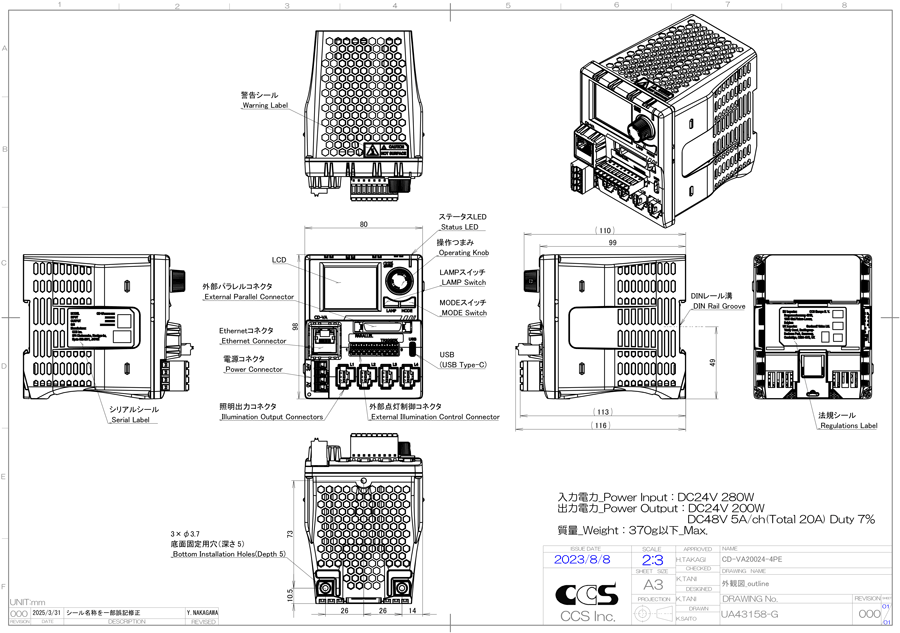

外形尺寸图(mm)
选件(另售)
For details, including compliance with environmental regulations, please contact your local sales office.
- Trigger cable (Model name: OP-ECBX9-3)
- External control cable (Model name: OP-ECBX32-3)
- Ferrite core (Model name: OP-NFT-13S)
DC24V电源容量
The 24 VDC control unit should be selected according to the total power consumption of the light used, based on the graph.
CD-VA10024-2P / CD-VA10024-2PE
CD-VA20024-4P / CD-VA20024-4PE
Note
When using with other devices, select a control unit depending on the device characteristics, leaving sufficient margin (approx. 2x) compared to the graph.
