TH Series
Not available from "May/31/2018."
The recommended alternative series is TH2 Series.

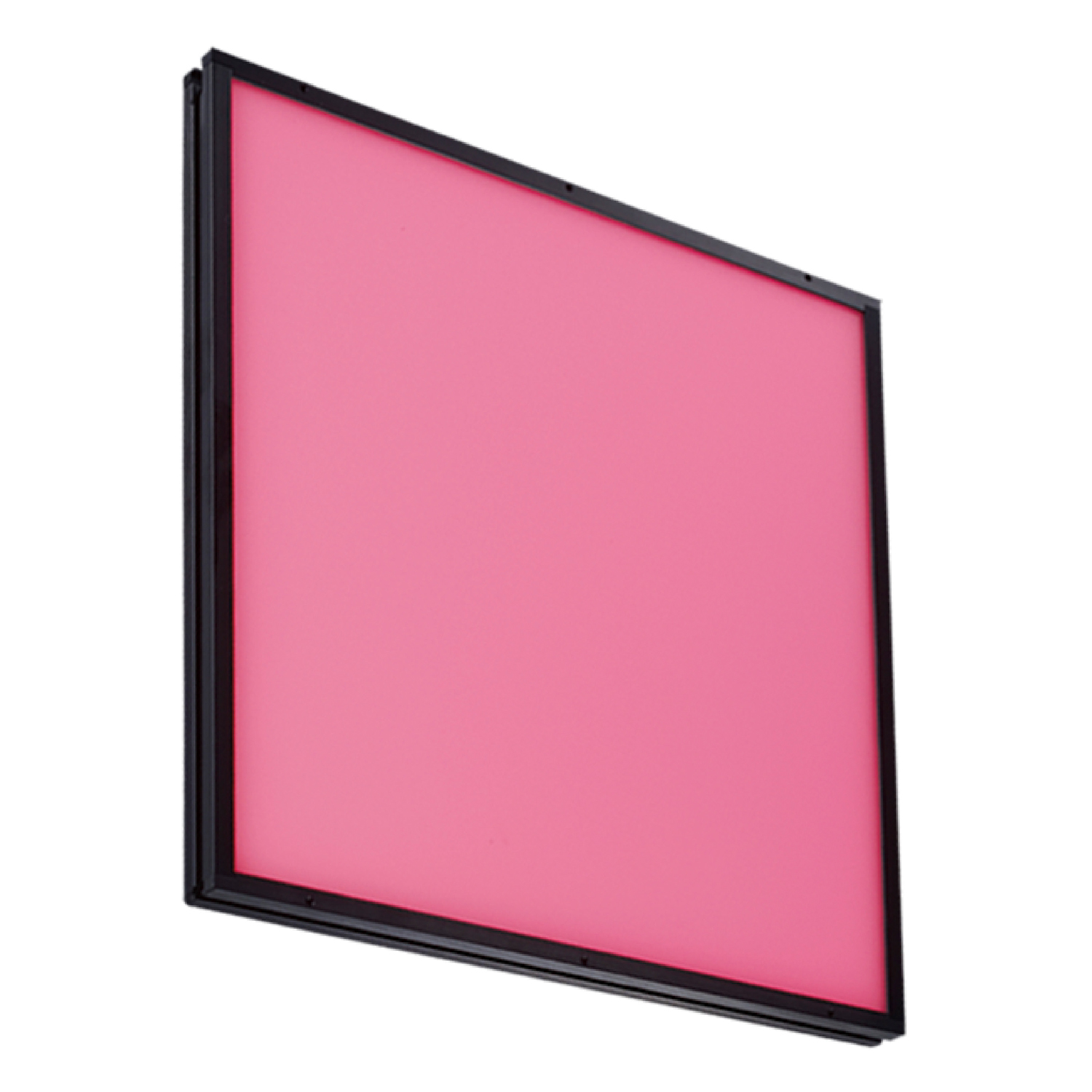

These Light Units were evolved from the LDL-TP Series to achieve high power output that was unprecedented for the Flat Lights. Abundant size variations and space-saving installation will also help your system design. The LED colors are red, white, and blue.
特点
Rich variety of sizes with 11 types
Rich variety of sizes
The lineup consists of 33 models, with 11 sizes of emitting surfaces from 27 x 27 mm to 211 x 200 mm in each color.
Install freely to match your environment

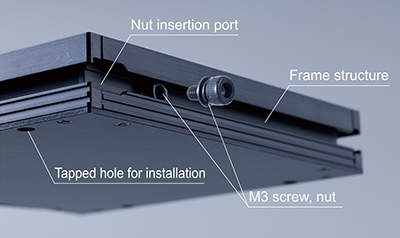

Uses installation method by frame structure. Tapped holes for installation are included not only on the unit side but also on the bottom.
Flat Lights with high output
This is a Flat Light with surface-mounted LEDs mounted densely.It illuminates diffused light evenly at high output.

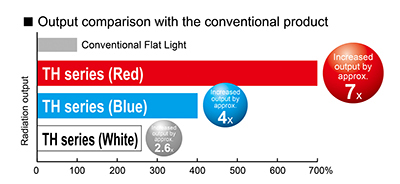

Achieved significantly higher output than the conventional product
※The data included is for reference only and does not guarantee the quality of this product.
Example configuration

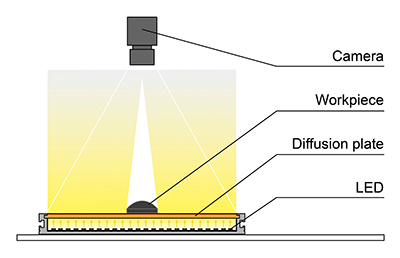

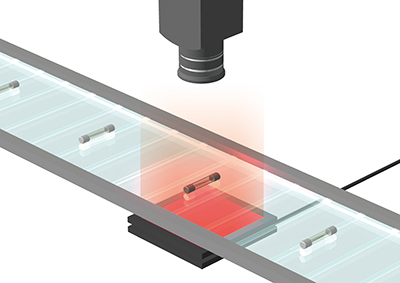

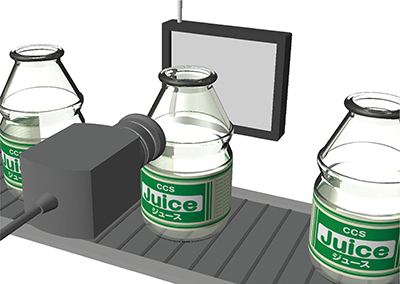

Achieved high output with a flat shape. Light from the LEDs is transmitted through the diffusion panel and illuminated on the rear of the workpiece.
TH-140X105
特性 ・数据

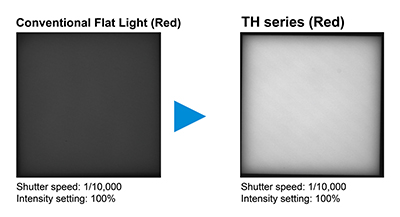

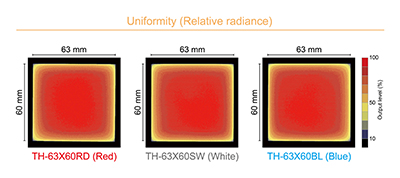

Data : Uniformity (Representative example)
※The data included is for reference only. Actual values may vary.
TH-63X60

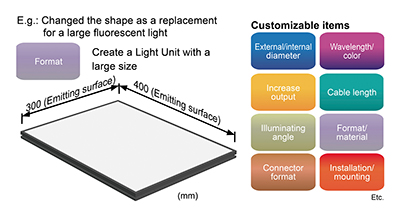

特殊定制例
Please contact your CCS sales representative.
成像实例

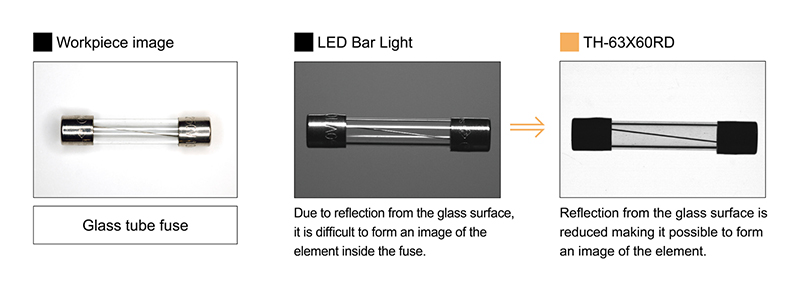

Imaging of an element of a glass tube fuse
Description | Visual inspection |
---|---|
Workpiece | Glass tube fuse |
Conventional lighting | LED Bar Light |
New lighting | TH-63X60RD |
Result | Emphasized the silhouette |

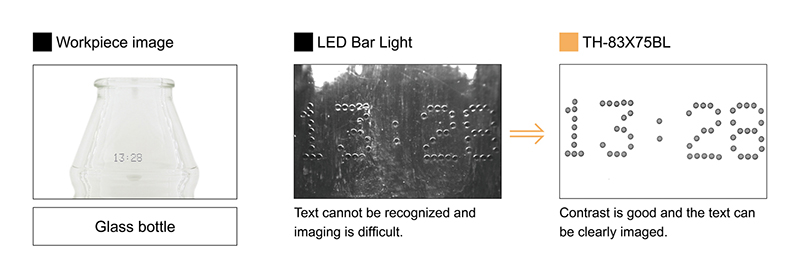

Imaging of text engraved on a glass bottle
Description | Character recognition |
---|---|
Workpiece | Glass bottle |
Conventional lighting | LED Bar Light |
New lighting | TH-83X75BL |
Result | Extracts only the engraved text |
