FPQ2 Series

Not available from "Dec/31/2019."

We recommend using FPQ3 series


These Low-angle square Lights are ideal for imaging square shaped workpiece.
Uneven illumination which may occur with the use of the Low-angle Ring Light can be avoided.
Preserving the style of the FPQ Series, these Light Units achieved high output.

Download Pamphlet PDF

特点

Perfect for square workpieces

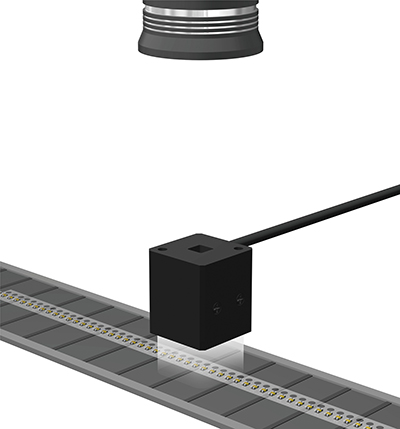

The FPQ2 series is a low angle Light Unit perfect for square workpieces. It can detect the outline of corners and prevents glare, which are difficult with Ring Lights.

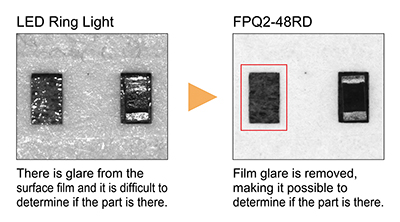

Imaging example for the FPQ2-48RD:Imaging for detecting electronics parts

Illuminates diffused light from four directions

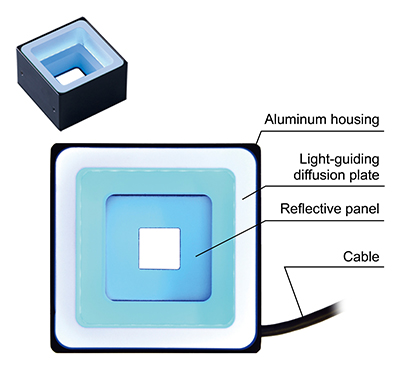

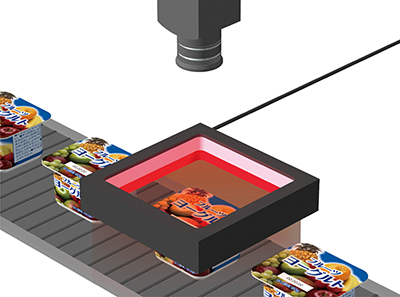

It is a diffused lighting with a square case. Light from the LEDs installed above is transmitted through the light-guiding diffusion plate and diffused light is illuminated from four directions on the workpiece from a low angle.

Illumination image for the FPQ2-48BL

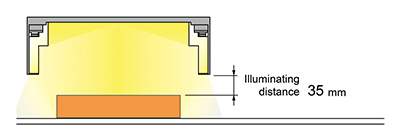

Example configuration

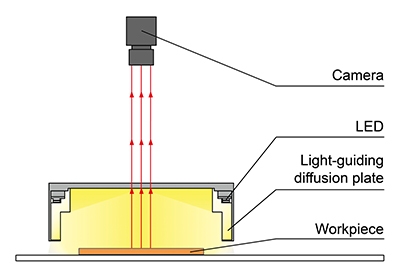

Light illuminated from the LEDs is transmitted through the light-guiding diffusion plate and uniform diffused light is illuminated centrally on the workpiece from a low angle.

FPQ2-96

特性 ・数据

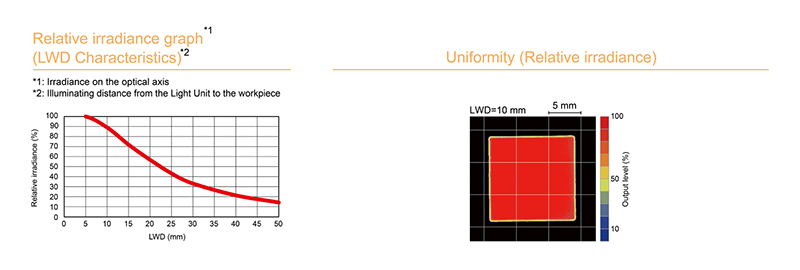

Data: Relative irradiance graph and uniformity (Representative example)

※The data included is for reference only. Actual values may vary.

FPQ2-48RD

LED properties

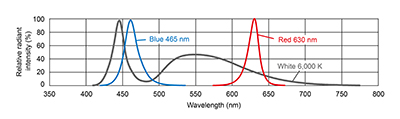

Spectral distribution

CCS offers you the most suitable lens filter for each wavelength.
For details about the lens filter,refer to here.

Be sure to read the "Instruction Guide" included with the product before use and follow the safety precautions upon use.
The data included is for reference only. Actual values may vary.

特殊定制例

Please contact your CCS sales representative.

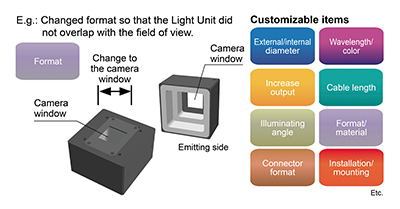

Custom Order Example

成像实例

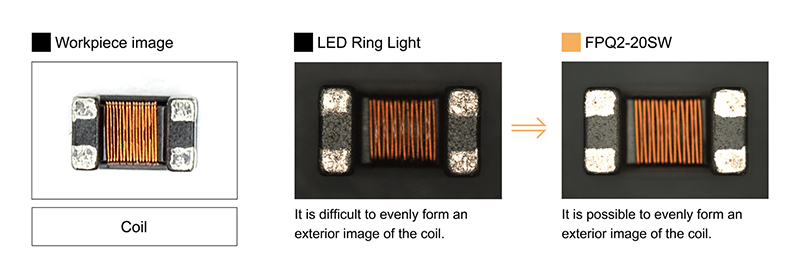

Exterior imaging for extremely small coil

Description Visual inspection
Workpiece Coil
Conventional lighting LED Ring Light
New lighting FPQ2-20SW
Result Improved uniformity

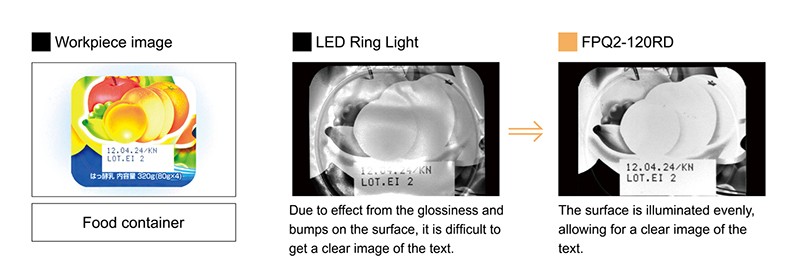

Imaging of date printed on food container

Description Text inspection
Workpiece Food container
Conventional lighting LED Ring Light
New lighting FPQ2-120RD
Result Improved uniformity
