IR Series

Not available from Mar/31/2015".
The recommended alternative model is IR2 Series.

These IR Lights can provide optimum peak wavelength in accordance with the spectral responsivity characteristics of the camera and the optical system. CCS offers a rich product lineup of 9 series and 32 models.

特点

Infrared light's long wavelength often allows for less scattering from part surfaces and higher transmission rates through them. Higher transmission means it can pass through more materials making IR light ideal for inspecting package fill levels or ensuring against foreign matter. Lower surface scattering means IR light can often be used to ignore some surface paint or print for unobstructed inspection for surface details such as scratches, chips, holes, edges, or characters on a wide variety of materials including paper, cloth, plastics and metals.

IR Series offers choice of peak wavelengths of 850-nm or 950-nm and features LED light spread angles optimized for the light structure

The choice of the IR LED peak wavelength allows you to capture the best images for your application by optimizing for the reflectivity of the object and sensitivity of the sensor. A full line of 32 light models allows you to choose the type of light geometry best suited for your application

特性 ・数据

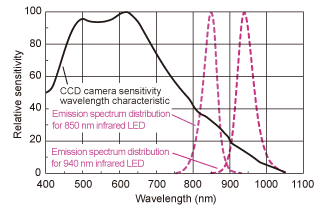

Deta（Typical camera* spectral sensitivity characteristic vs. infrared LED emission spectrum distribution）

※The graph included is for reference only. Actual values may vary.

※ CV-M50IR provided by JAI Corp.

成像实例

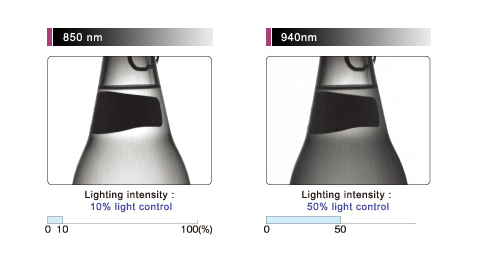

Imaging with peak wavelength of 850 nm vs. 940 nm
