HPR2-100IR860

  • 特殊定制品

This Light Unit emits infrared light and has an outer diameter of 116 mm, an inner diameter of 66 mm, and a height of 264 mm.

Built to order

This is a made-to-order product. For queries and details, contact your CCS sales representative.

产品详细信息

LED发光颜色 Infrared
峰值发光波长 860 nm typ.
外观尺寸 Outer diameter 116 mm, Inner diameter 66 mm, Height 26.4 mm
输入电压 24VDC
消耗功率 23 W max.
极性, 信号 1: (+), 2: NC, 3: (-)
线缆长度 300 mm
外壳材质 Aluminum alloy, resin
输入端口 SMR-03V-B
适合规格 RoHS
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling

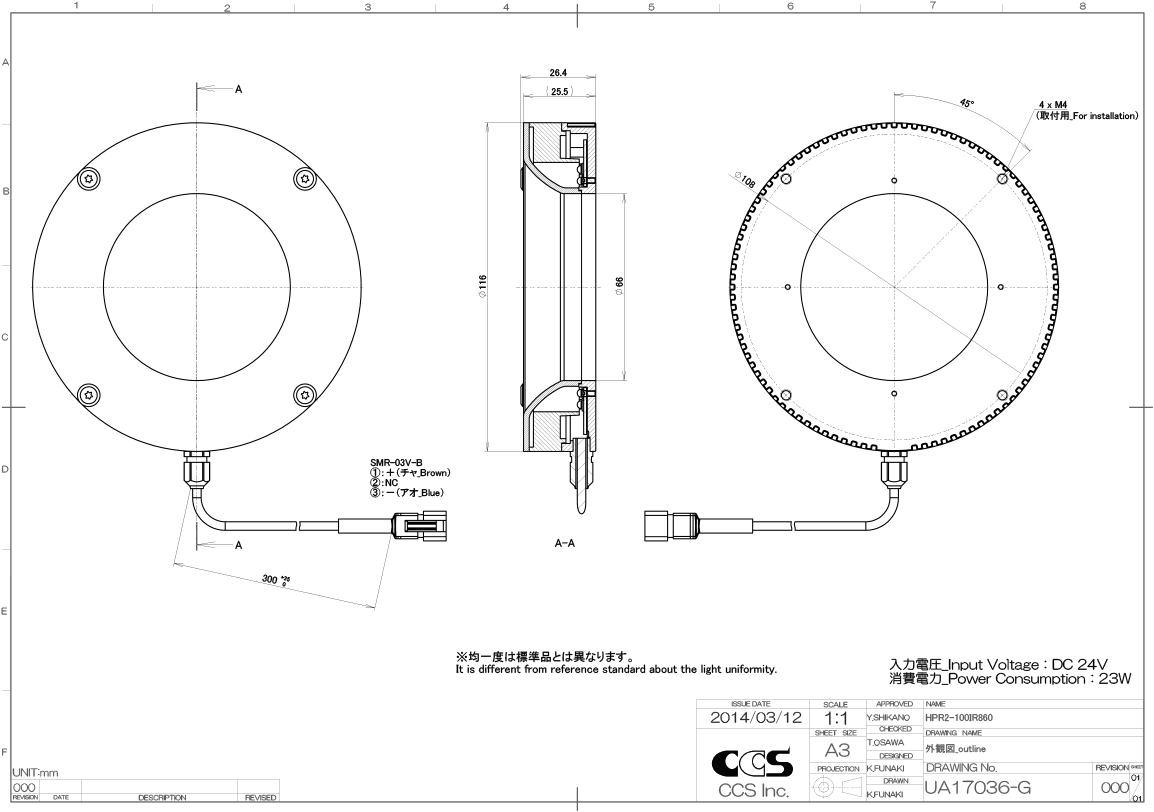

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-6024-2-P

  • PD4-6024-2-E

  • PD4-6024-4-P

  • PD4-6024-4-E

  • PD4-12024-2-P

  • PD4-12024-2-E

  • PD4-12024-4-P

  • PD4-12024-4-E

  • CD-VA10024-2P

  • CD-VA20024-4P

  • CD-VA10024-2PE

  • CD-VA20024-4PE

  • CN-4024-2-EIPT

  • POD-22024-4-PEI

  • POD-5024-2-PEI

  • PD3-3024-3-PI

  • PD3-3024-3-SI(A)

  • PD3-3024-3-EI(A)

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-3024-3-PT

  • PD3-3024-3-ET(A)

  • PD3-5024-3-PT

  • PD3-5024-3-ET(A)

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PD2-3024(A)

  • PD2-5024(A)

  • PD2-3024-2(A)

  • PD2-3024-4(A)

  • PD2-3024-8(A)

  • PTU2-3024(A)

  • PB-2430-1

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-W-1

    Cable length: 1 m
    2-branch cable

  • FCB-W-2

    Cable length: 2 m
    2-branch cable

  • FCB-W-3

    Cable length: 3 m
    2-branch cable

  • FCB-W-5

    Cable length: 5 m
    2-branch cable

  • FCB-F-1

    Cable length: 1 m
    4-branch cable

  • FCB-F-2

    Cable length: 2 m
    4-branch cable

  • FCB-F-3

    Cable length: 3 m
    4-branch cable

  • FCB-F-5

    Cable length: 5 m
    4-branch cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 3 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable

选件

  • BK-100-CI

  • BK-100-JO
