LDR2-100UV3-365-N / LDR2-100UV3-365-W

  • 标准品

Ring type ultraviolet LED light with a peak wavelength of 365nm.
Narrow type (LDR2-100UV3-365-N) for convergent illumination on a narrow area and
wide type (LDR2-100UV3-365-W) to illuminate a wide area are available.
Outer diameter 100 mm, inner diameter 30 mm.

产品详细信息

LED发光颜色 Ultraviolet
峰值发光波长 365 nm typ.
外观尺寸 LDR2-100UV3-365-N: Outer diameter 100 mm, Inner diameter 30 mm, Height 19 mm
LDR2-100UV3-365-W: Outer diameter 100 mm, Inner diameter 30 mm, Height 15 mm
输入电压 24 VDC
消耗功率 23 W max.
极性, 信号 1: (+), 2: NC, 3: (-)
线缆长度 300 mm
外壳材质 Aluminum alloy
输入端口 SMR-03V-B
适合规格 CE, UKCA, RoHS, REACH
IEC 62471
LDR2-100UV3-365-N: High risk
LDR2-100UV3-365-W: Mod risk
使用温湿度 Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度 Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式 Natural air cooling
重量 LDR2-100UV3-365-N: 210 g max.
LDR2-100UV3-365-W: 240 g max.
附属品 User Manual, Radiation aperture seal, UV DANGER seal
注意事项 * Do not expose your eyes or skin to direct UV irradiation.
* When using UV illumination, be sure to wear UV blocking eye wear and avoid looking at irradiating parts (emitting parts).
* Do not turn on UV-LED irradiating parts (emitting parts) if they are facing someone's eyes.
* Wear long sleeves and gloves to protect your skin from UV irradiation.
* Thoroughly educate all those involved near the product about the dangers of UV LEDs.

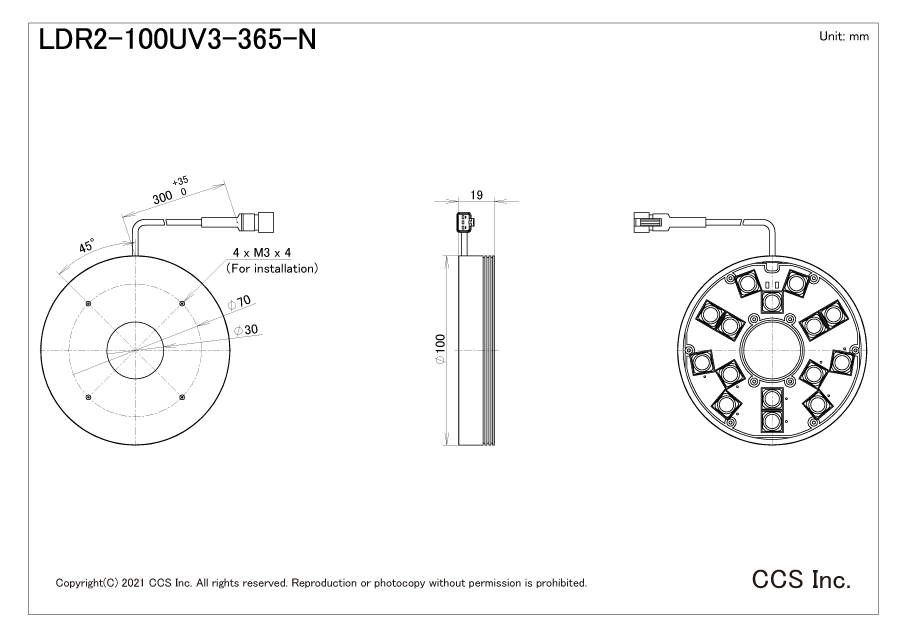

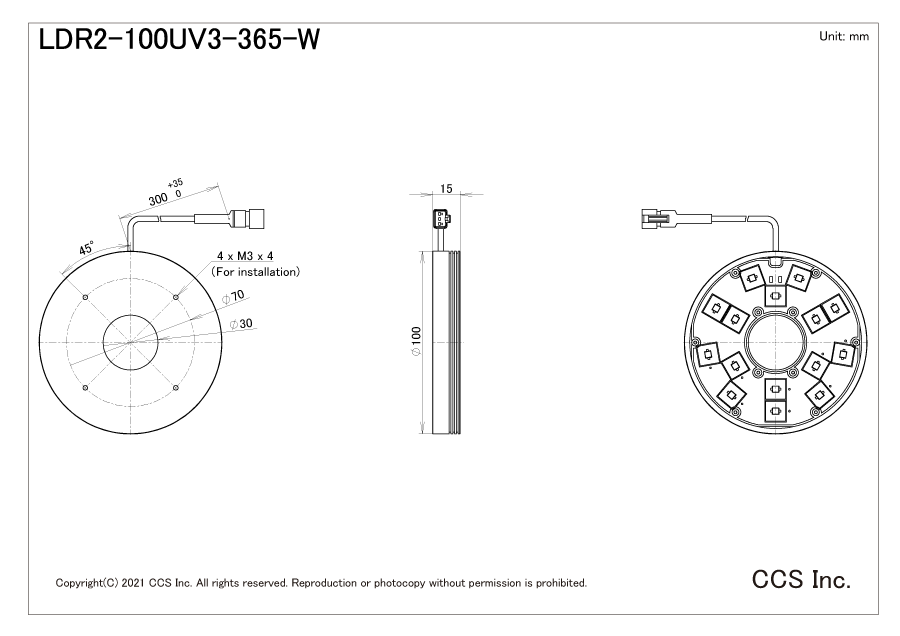

外形尺寸图(mm)

* Click to enlarge image.

电源

Control Unit Guide(PDF)

  • PD4-3024A-2-P

  • PD4-3024A-2-P-NC

  • PD4-3024A-2-E

  • PD4-3024A-2-E-NC

  • PD4-3024A-4-P

  • PD4-3024A-4-P-NC

  • PD4-3024A-4-E

  • PD4-3024A-4-E-NC

  • PD4-12024A-8-P

  • PD4-12024A-8-P-NC

  • PD4-12024A-8-E

  • PD4-12024A-8-E-NC

  • PD4-6024-2-P

  • PD4-6024-2-P-NC

  • PD4-6024-2-E

  • PD4-6024-2-E-NC

  • PD4-6024-4-P

  • PD4-6024-4-P-NC

  • PD4-6024-4-E

  • PD4-6024-4-E-NC

  • PD4-12024-2-P

  • PD4-12024-2-P-NC

  • PD4-12024-2-E

  • PD4-12024-2-E-NC

  • PD4-12024-4-P

  • PD4-12024-4-P-NC

  • PD4-12024-4-E

  • PD4-12024-4-E-NC

  • CD-VA10024-2P

  • CD-VA20024-4P

  • CD-VA10024-2PE

  • CD-VA20024-4PE

  • PD3-5024-4-PI(A)

  • PD3-5024-4-SI(A)

  • PD3-5024-4-EI(A)

  • PD3-10024-8-PI

  • PD3-10024-8-SI(A)

  • PD3-10024-8-EI(A)

  • PD3-3024-3-SI(A)

  • PD3-3024-3-EI(A)

  • PD3-3024-3-PT

  • PD3-5024-4-PT(A)

  • PD3-5024-4-ET(A)

  • PD3-3024-3-ET(A)

  • PD3-3024-3-PI

  • PD3-5024-3-PT

  • PD3-5024-3-ET(A)

  • PD2-3024-8(A)

  • PD2-3024-4(A)

  • PD2-3024(A)

  • PD2-3024-2(A)

  • PD2-5024(A)

  • POD-22024-4-PEI

  • POD-5024-2-PEI

  • PTU2-3024(A)

  • CN-4024-2-EIPT

线缆

  • FCB-1

    Cable length: 1 m
    Straight cable

  • FCB-2

    Cable length: 2 m
    Straight cable

  • FCB-3

    Cable length: 3 m
    Straight cable

  • FCB-5

    Cable length: 5 m
    Straight cable

  • FCB-W-1

    Cable length: 1 m
    2-branch cable

  • FCB-W-2

    Cable length: 2 m
    2-branch cable

  • FCB-W-3

    Cable length: 3 m
    2-branch cable

  • FCB-W-5

    Cable length: 5 m
    2-branch cable

  • FCB-F-1

    Cable length: 1 m
    4-branch cable

  • FCB-F-2

    Cable length: 2 m
    4-branch cable

  • FCB-F-3

    Cable length: 3 m
    4-branch cable

  • FCB-F-5

    Cable length: 5 m
    4-branch cable

  • FRCB-1

    Cable length: 1 m
    Robot cable

  • FRCB-2

    Cable length: 3 m
    Robot cable

  • FRCB-3

    Cable length: 3 m
    Robot cable

  • FRCB-5

    Cable length: 5 m
    Robot cable
